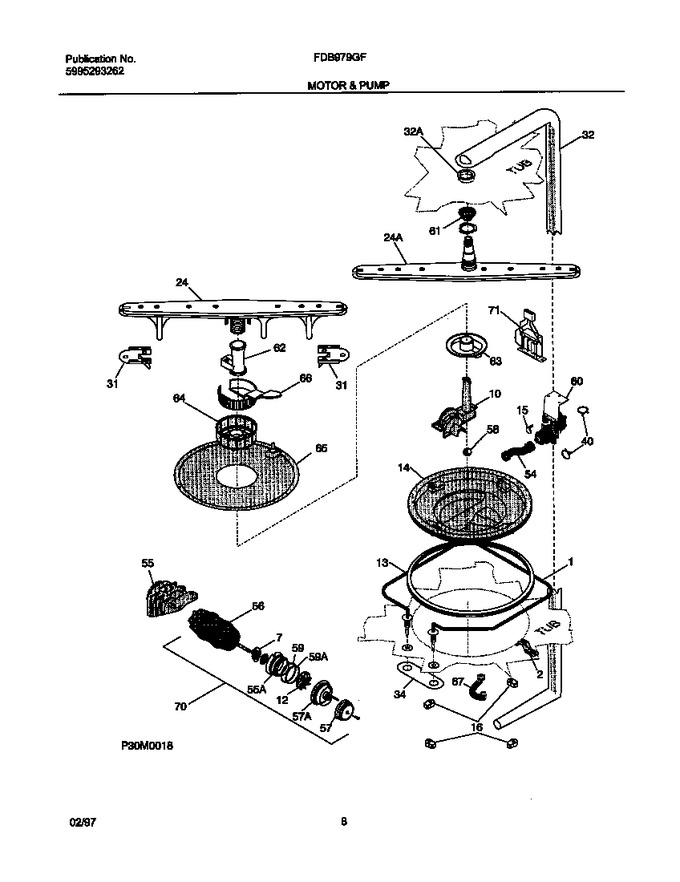

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154665201		Heater   (Replaces: 154247601)			Immediately	$ 78.97
2	154211001		Bracket-heater				$ 32.35
7	154245901		Macerator				$ 7.35
10	807145201		Cover-volute   (Replaces: 154245501)			Immediately	$ 19.90
12	154245801		Impeller				$ 17.73
13	154246801		Gasket-sump				$ 52.17
14	154245401		Housing-sump		Appelez-nous	-
15	154246701		Check Valve				$ 40.01
16	154246501		Retainer, Sump		Appelez-nous	-
24	5304517203		Spray Arm-lower, W/cover   (Replaces: 154250901)			Immediately	$ 41.76
32	154251701		Tube,delivery		Appelez-nous	-
34	154064901		Washer-insulating				$ 8.14
40	154611101		Clamp-hose   (Replaces: 154106801)				$ 12.05
54	154234401		Hose,connector				$ 68.68
55	154245601		Bracket-motor		Appelez-nous	-
56	154245702		Motor, Circulation		Appelez-nous	-
57	154246001		Barrel,front				$ 46.88
58	154246402		Check Ball   (Replaces: 154246401)			Immediately	$ 55.99
59	154246901		O-ring,rear			Immediately	$ 56.70
60	154247501		Drain-pump Assy		Appelez-nous	-
61	154250201		Nozzle, 3rd Level, Spray Arm		Appelez-nous	-
62	5304532235		Support-spray Arm   (Replaces: 154294101)			Immediately	$ 7.33
63	5304532205		Base,soil Director   (Replaces: 154252201)			Immediately	$ 13.74
64	5304532205		Filter-soil Director   (Replaces: 154252301)			Immediately	$ 13.74
65	154283002		Filter Assy		Appelez-nous	-
66	154252701		Trap,glass			Immediately	$ 56.57
67	154246601		Hose-drain, Shunt		Appelez-nous	-
70	154291501		Motor & Pump Assy		Appelez-nous	-
71	154289901		Transformer				$ 201.81
*89297	154106202		Nut-heater   (Replaces: 154106201)			Immediately	$ 18.32
*89298	154289801		Shield-heater Terminal				$ 7.33
*89299	5300810094		Screw-heater Bracket		Appelez-nous	-
*89300	154282701		Screw,ss Impeller				$ 2.54
*89301	154252001		Nut-spray Arm				$ 40.45
*89302	154287201		Screw-motor Mtg		Appelez-nous	-
*89303	154234501		Bracket,motor ,drain		Appelez-nous	-
*89304	154247101		Clamp, Drain Side		Appelez-nous	-
*89305	154247201		Clamp, Intake		Appelez-nous	-
*89306	154348401		Clamp, Drain Pump   (Replaces: 154247301)				$ 32.96
*89307	154247401		Clamp, Connector Pump		Appelez-nous	-
*89308	5303316032		Screw,truss Ss ,8 .625				$ 10.45
24A	154313601		Spray Arm-center   (Replaces: 154250501)			Immediately	$ 44.65
31A	154281001		Shield-spray Arm		Appelez-nous	-
31B	154281101		Shield-spray Arm, White		Appelez-nous	-
32A	154251601		Gasket-delivery Tube		Appelez-nous	-
55A	154246201		Bracket-motor,front		Appelez-nous	-
57A	154246101		Barrel,rear				$ 27.67
59A	154247001		O-ring,front			Immediately	$ 56.70
