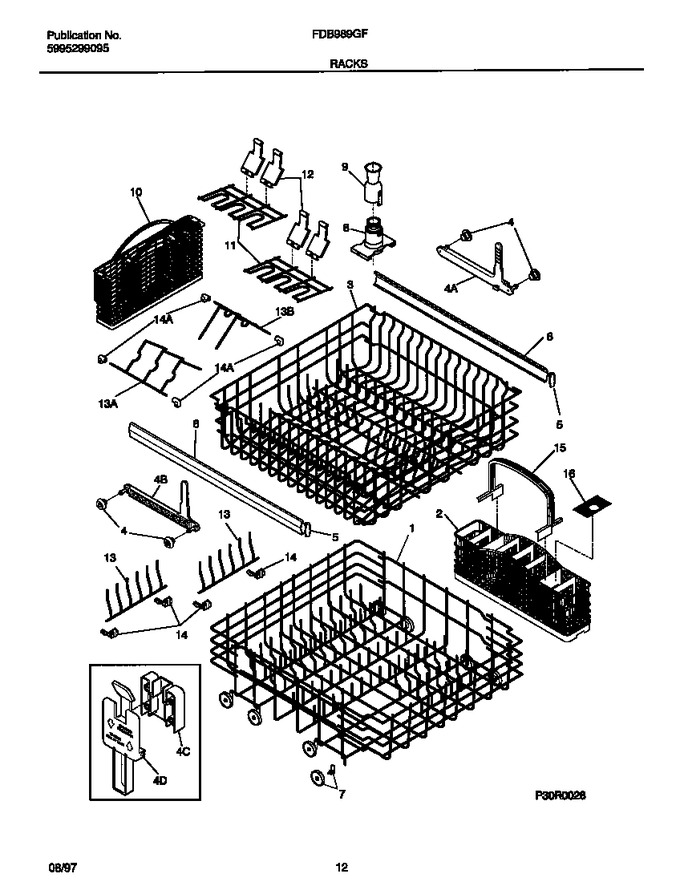

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154308305		Rack Assy-lower		Appelez-nous	-
2	5304535382		Basket-silverware   (Replaces: 154295201)			Immediately	$ 25.43
3	154207705		Rack Assy-upper		Appelez-nous	-
4	154310002		Axle, Adjustable Rack, Lh, (1)				$ 43.47
4	5304535381		Wheel,upper Rack ,(4)   (Replaces: 5303286384)			Immediately	$ 10.05
4	154310001		Axle, Adjustable Rack, Rh, (1)				$ 53.03
4	154309901		Support-mechanism, Adjustable Rack, (2)				$ 32.63
4	154309801		Support-axle, Adjustable Rack, (2)				$ 43.10
5	5300809927		Cap,slide ,(4)			Immediately	$ 3.69
6	154597801		Slide,rack ,(2)   (Replaces: 154232701)			Immediately	$ 9.36
7	5304532229		Wheel & Bracket Assy,lower Rack   (Replaces: 154174501)			Immediately	$ 12.75
8	154728001		Base-funnel   (Replaces: 154304001)				$ 27.03
9	154251801		Funnel				$ 49.88
10	154238801		Basket-utility, White				$ 302.77
11	154225102		Shelf-cup, Half, White, (2)		Appelez-nous	-
12	154238901		Bracket-shelf Cup		Appelez-nous	-
13	154225402		Fence, Multi, 3 Wire, Upper Rack, (3)				$ 43.37
13	154225302		Fence, Multi, 2 Wire, Upper Rack, (1)		Appelez-nous	-
13	5304535768		Fence, Fold Down, White, Lower Rack, (2)   (Replaces: 154224902)			Immediately	$ 162.61
14	5304506508		Bracket-fence, Multi, White, Upper Rack, (8)   (Replaces: 154242001)			Immediately	$ 5.79
15	5304535382		Handle-silverware Basket   (Replaces: 154254001)			Immediately	$ 25.43
16	154254101		Cover-silverware Basket, White		Appelez-nous	-
14A	154376501		Bracket-fence, Fold Down, Lower Rack, (4)   (Replaces: 154316001)			Immediately	$ 47.85
14B	154242101		Bushing-fence, Multi, Upper Rack, (8) (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
