SELECT A DIAGRAM

01 - Cover

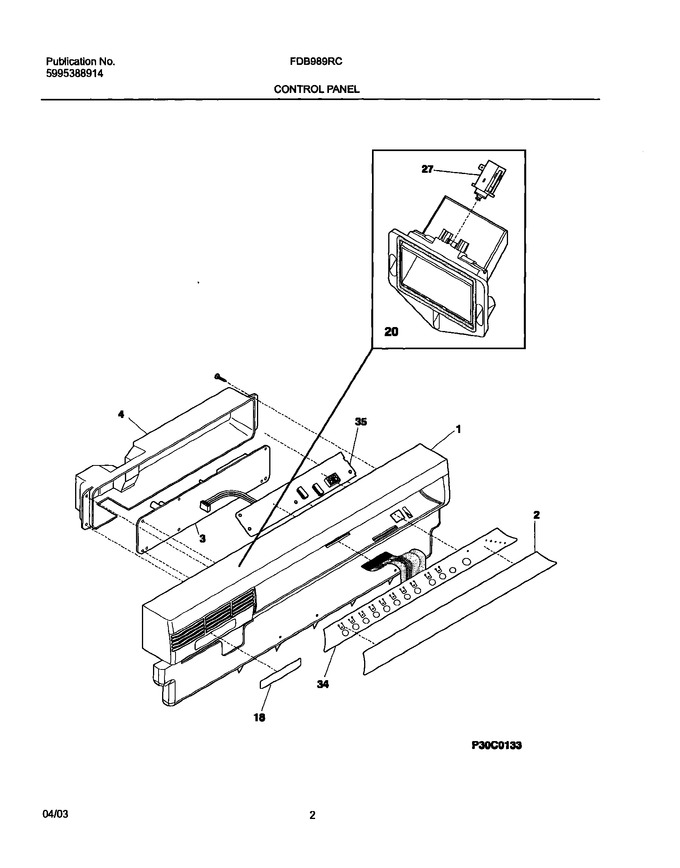

03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154370303		Panel-control,black				$ 167.74
2	154449403		Insert,control Panel ,black ,10 Pad		Appelez-nous	-
4	154287901		Cover-control				$ 182.91
18	154473603		Nameplate,black ,frigidaire		Appelez-nous	-
20	154423601		Vent Assy,active Dry ,w/actuator				$ 198.55
27	154433501		Actuator,active Dry Vent		Appelez-nous	-
35	154393501		Board,display		Appelez-nous	-
F3	154445802		Control,electronic				$ 449.66
F34	154449501		Keypad,10pad		Appelez-nous	-
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154444901		Wiring Harness		Appelez-nous	-
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	154399007		Label,energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
