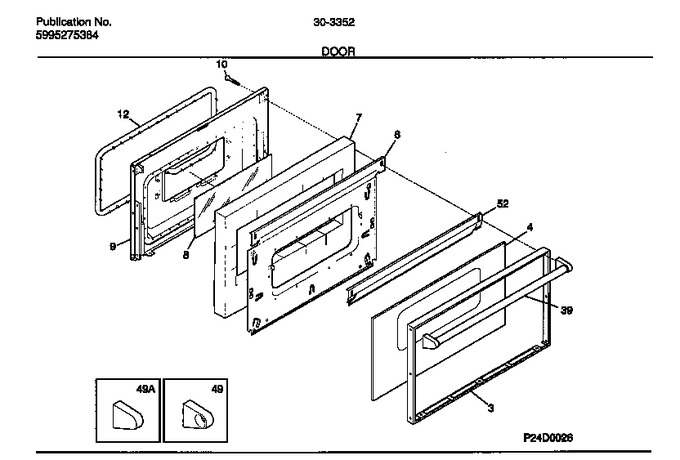

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089000		Glass-oven Door, Outer		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	316008302		Handle-door, Oven		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*10287	316071600		Plate Warning/caution		Appelez-nous	-
*10288	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*10289	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*10290	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*10291	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*10292	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*10293	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*10294	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
