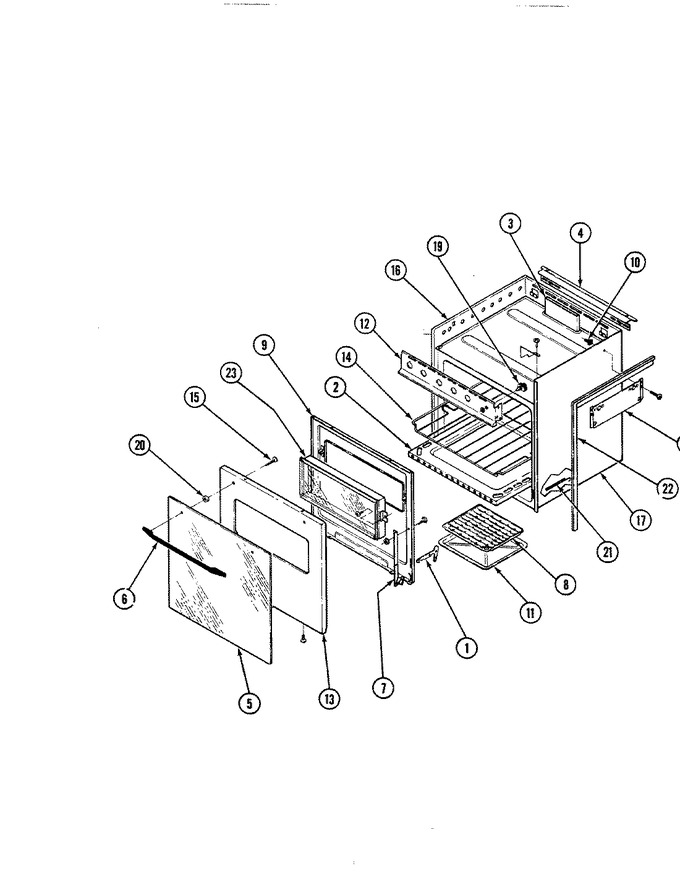

01 - Cavity & Door
02 - Main Top & Burner Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F127-70 | Bottom, Burner Box | 1 |
|
- | ||||
| 1 | 3423F001-34 | Arm, Spring | 1 |
|
$ 7.41 | ||||
| 1 | 4011F125-51 | Bottom, Main | 1 |
|
- | ||||
| 2 | 50-25244 | Bottom, Oven | 1 |
|
- | ||||
| 2 | 4002F087-20 | Rack, Main | 1 |
|
- | ||||
| 3 | 50-21271 | Box Flue Assy | 1 |
|
- | ||||
| 4 | 50-27039-1 | Deflector, Flue | 1 |
|
- | ||||
| 6 | 50-25104 | Handle, Oven Dr. | 1 |
|
- | ||||
| 7 | 3418A059-34 | Hinge, Door (lt) | 1 |
|
- | ||||
| 7 | 3418A058-34 | Hinge, Door (rt) | 1 |
|
- | ||||
| 8 | 50-22119-2 | Insert | 1 |
|
- | ||||
| 9 | 2402F123-23 | Lining, Oven Dr | 1 |
|
- | ||||
| 10 | 499-00175 | Tee Nut | 1 |
|
- | ||||
| 11 | 3401F013-23 | Pan, Broiler | 1 |
|
- | ||||
| 12 | 2616F054-90 | Panel, Mainfold Black | 1 |
|
- | ||||
| 13 | 2401F075-74 | Panel, Door Almond | 1 |
|
- | ||||
| 14 | 7801P027-60 | Rack | 1 |
|
- | ||||
| 15 | 50-20318-2 | Seal Door Side | 1 |
|
- | ||||
| 15 | 50-20317-1 | Seal | 1 |
|
- | ||||
| 15 | 7101P233-60 | Screw, Dr Handle | 1 |
|
- | ||||
| 16 | 50-27054 | Body, Side | 1 |
|
- | ||||
| 17 | 50-27051 | Body, Side | 1 |
|
- | ||||
| 18 | 50-22244 | Heat Shield | 1 |
|
- | ||||
| 21 | 50-20137-2 | Strap Seal | 1 |
|
- | ||||
| 21 | 50-20237-1 | Strap | 1 |
|
- | ||||
| 21 | 7803P052-60 | Spring, Oven Door | 1 |
|
- | ||||
| 21 | 50-25111 | Spring, Ov Dr | 1 |
|
- | ||||
| 22 | 3608F018-70 | Trim, Side Left | 1 |
|
- | ||||
| 22 | 3608F017-70 | Trim, Right | 1 |
|
- |
