01 - Cavity & Door

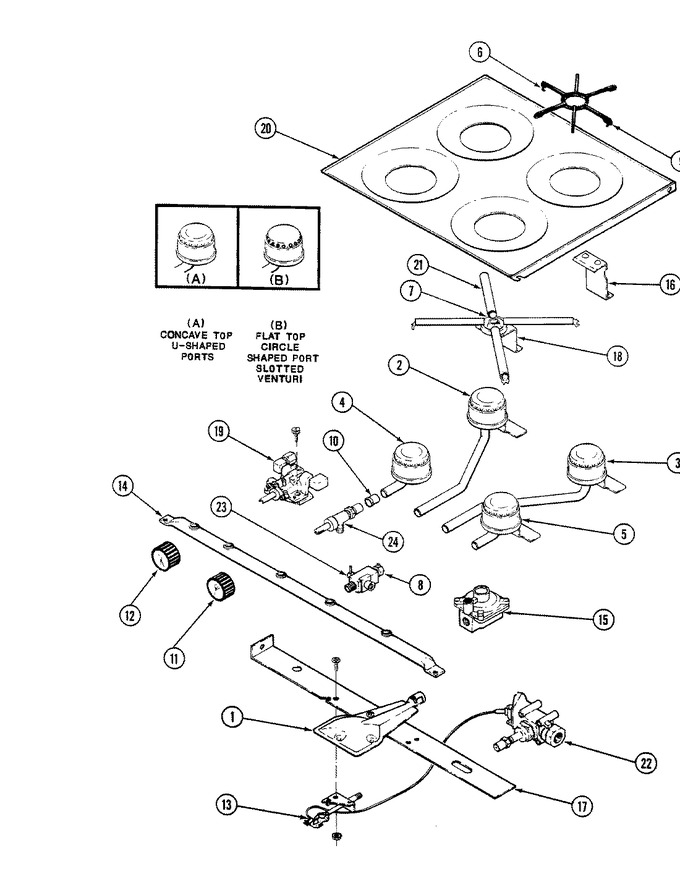

02 - Main Top & Burner Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8003P008-60 | Bumper | 1 |
|
- | ||||
| 1 | 50-20216 | Burner | 1 |
|
- | ||||
| 2 | 50-21519 | Burner, L | 1 |
|
- | ||||
| 2 | 7505P154-60 | Burner, Assy L.r. | 1 |
|
- | ||||
| 3 | 7505P153-60 | Burner, Assy R.r. | 1 |
|
- | ||||
| 3 | 50-21517 | Burner, R | 1 |
|
- | ||||
| 4 | 7505P152-60 | Burner, Assy L.f. | 1 |
|
- | ||||
| 4 | 50-21516 | Burner, L | 1 |
|
- | ||||
| 5 | 50-21514 | Burner R | 1 |
|
- | ||||
| 5 | 7111P013-60 | Clamp, Wire | 1 |
|
- | ||||
| 5 | 7505P151-60 | Burner, Assy R.f. | 1 |
|
- | ||||
| 5 | 7112P068-60 | Clip | 1 |
|
- | ||||
| 5 | 7112P053-60 | Clip, Capillary | 1 |
|
- | ||||
| 6 | 7112P066-60 | Clip, Grate | 1 |
|
- | ||||
| 7 | 7506P066-60 | Lighter Cup | 1 |
|
- | ||||
| 8 | 7507P045-60 | Half Union | 1 |
|
- | ||||
| 8 | 7507P050-60 | Fitting, 1/8`` Hex Nipple | 1 |
|
- | ||||
| 8 | 735-126 | Pilot Filter | 1 |
|
- | ||||
| 9 | 50-25439 | Grate | 1 |
|
- | ||||
| 10 | 7214P015-60 | Insert, Burner | 1 |
|
- | ||||
| 10 | 7-8406 | Bushing | 1 |
|
- | ||||
| 11 | 50-26276 | Knob | 1 |
|
- | ||||
| 12 | 50-20281 | Knob | 2 |
|
- | ||||
| 12 | 7505P147-60 | Pilot, Burner Tube | 1 |
|
- | ||||
| 12 | 50-20781 | Knob, Thermostat | 1 |
|
- | ||||
| 13 | 968-143 | Pilot, Oven | 2 |
|
- | ||||
| 13 | 968-116 | Pilot | 1 |
|
- | ||||
| 14 | 3430W004-70K | Pipe, Manifold | 1 |
|
- | ||||
| 14 | 7513P095-60 | Pipe Manifold | 4 |
|
- | ||||
| 15 | 7510P032-60 | Regulator Pressure | 4 |
|
- | ||||
| 15 | 976-27 | Regulator | 1 |
|
- | ||||
| 15 | 7510P033-60 | Pressure Regulator | 5 |
|
- | ||||
| 16 | 50-22027 | Pilot Shield | 1 |
|
- | ||||
| 17 | 50-21058-2 | Support | 1 |
|
- | ||||
| 18 | 3807F322-80 | Support, Top Pilot | 1 |
|
- | ||||
| 19 | 7515P025-60 | Thermostat----na | 1 |
|
- | ||||
| 19 | 7515P024-60 | Thermostat | 2 |
|
- | ||||
| 20 | 2001F057-70 | Top, Main Black | 1 |
|
- | ||||
| 21 | 7506P067-60 | Flash Tube | 1 |
|
- | ||||
| 21 | 7506P072-60 | Tube, 1/4 X 43.5 | 1 |
|
- | ||||
| 21 | 7506P043-60 | Tube, 3/16 O.d. X 46 | 1 |
|
- | ||||
| 22 | 997-631 | Valve, Merc Ctrl | 1 |
|
- | ||||
| 22 | 997-626 | Valve | 2 |
|
- | ||||
| 23 | 997-554 | Valve | 1 |
|
- | ||||
| 24 | 7502P095-60 | Valve | 1 |
|
- |
