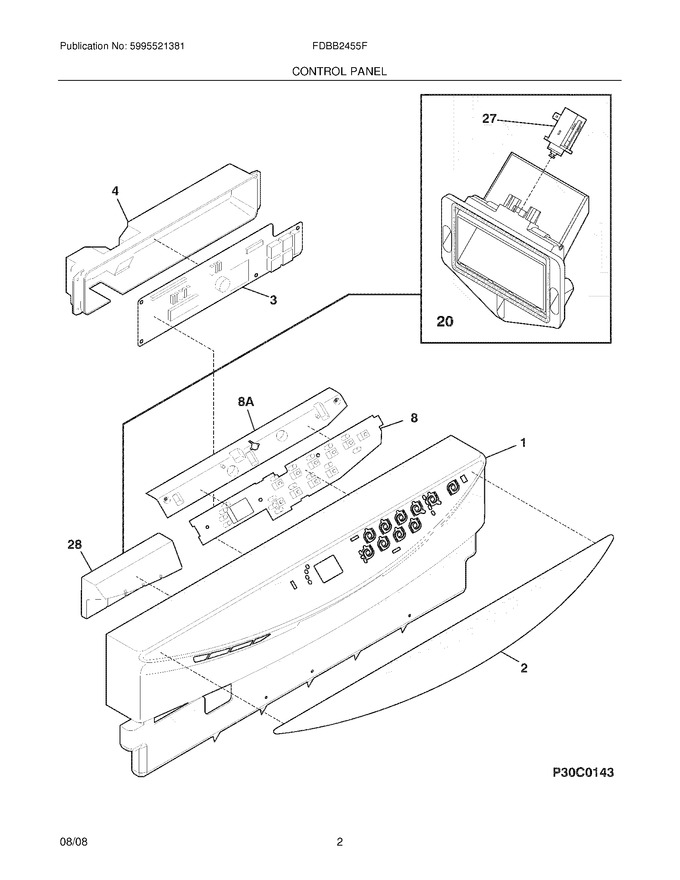

03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154662501		Panel,control ,white				$ 92.56
2	154722001		Insert,control Panel ,white		Appelez-nous	-
3	154663004		Board,control   (Replaces: 154596504)				$ 284.11
4	154554601		Cover,control				$ 25.62
20	154423601		Vent Assy,active Dry ,w/actuator				$ 198.55
27	154433501		Actuator,active Dry Vent		Appelez-nous	-
28	154474401		Adapter,vent				$ 52.92
8A	154486201		Shield,tactile Switch				$ 49.56
F8	154474601		Switch,selector ,10 Pad				$ 287.02
FNI	154646001		Wiring Harness,main		Appelez-nous	-
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154478901		Gasket,cover				$ 61.66
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
NI	154678508		Energy Guide Label		Appelez-nous	-
