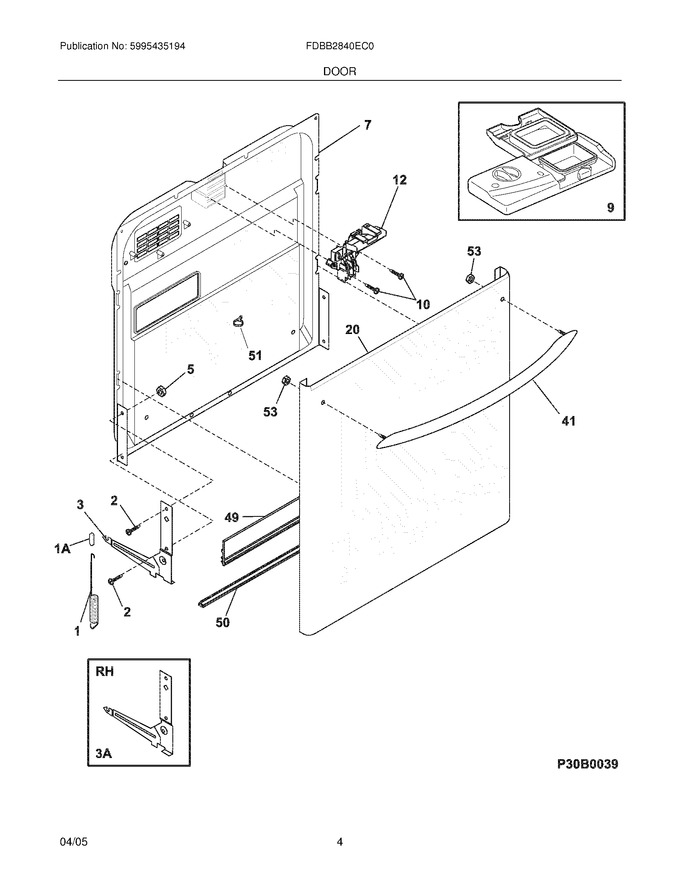

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154430601		Spring,door ,(2)			Immediately	$ 48.12
2	154093301		Screw,arm Assy ,(4)			Immediately	$ 2.12
3	5304513274		Arm Assy,lh   (Replaces: 154325302)			Immediately	$ 66.56
5	154079601		Nut,arm Assy ,and Handle Mtg.				$ 0.41
7	154494601		Liner,door Assy.				$ 239.60
9	5304507354		Dispenser,det/rinse Aid ,w/reed   (Replaces: 154452704)			Immediately	$ 77.60
10	154103702		Screw-latch Mtg, (2)				$ 13.46
12	154529403		Latch Assy,black				$ 177.51
20	154533202		Door,stainless		Appelez-nous	-
41	154470405		Towel Bar Assy,stainless				$ 102.75
49	809006501		Gasket,door ,bottom   (Replaces: 154297603)			Immediately	$ 36.22
50	154211401		Support-door Hinge				$ 25.69
51	154320301		Clamp,drip Loop ,wire				$ 62.69
53	154425001		Nut,keps ,(2) ,handle Mtg.				$ 9.93
1A	154325201		Linkage,door Spring ,(2)			Immediately	$ 27.27
3A	5304513274		Arm Assy,rh   (Replaces: 154325301)			Immediately	$ 66.56
NI	154200601		Screw,no.10-16 X 3/8				$ 7.98
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
NI	5304538695		Insulation,door   (Replaces: 154253201)		Appelez-nous	-
NI	5304428306		Screw,door Mtg. ,(2)				$ 4.67
NI	154529101		Pin,arm Assy				$ 4.62
