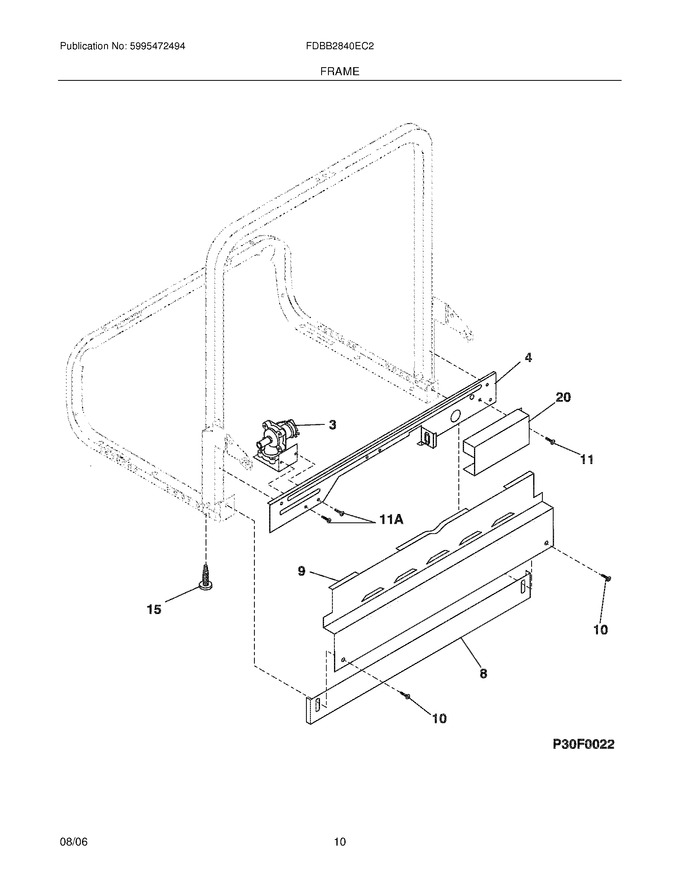

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304508587		Brace,front Frame   (Replaces: 154208701)				$ 28.92
8	154745503		Toeplate,adjustable ,black   (Replaces: 154589403)			Immediately	$ 15.75
9	5304501484		Kickplate Assy,black   (Replaces: 154589503)			Immediately	$ 51.08
10	154419403		Screw,no.8a X .375`` ,black   (Replaces: 5300808658)				$ 13.10
11	134154100		Screw-no.10-32 X 3/8   (Replaces: 154200701)				$ 13.46
15	5304506540		Leg,leveling ,(4)   (Replaces: 154571101)			Immediately	$ 10.85
20	154209601		Cover-junction Box				$ 39.80
11A	154200601		Screw,no.10-16 X 3/8				$ 7.98
F3	154637401		Valve,water   (Replaces: 154476101)			Immediately	$ 21.36
NI	154412301		Baffle,sound		Appelez-nous	-
NI	154290101		Guard,sound Baffle ,wire		Appelez-nous	-
NI	154290001		Insulation,sound Baffle ,side		Appelez-nous	-
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
NI	154200602		Screw,10-16 X 3/8 ,hex				$ 10.21
NI	808326801		Screw,no.8-18 X .375   (Replaces: 154409401)				$ 2.84

    View Diagram in Separate Window       Print Part List
