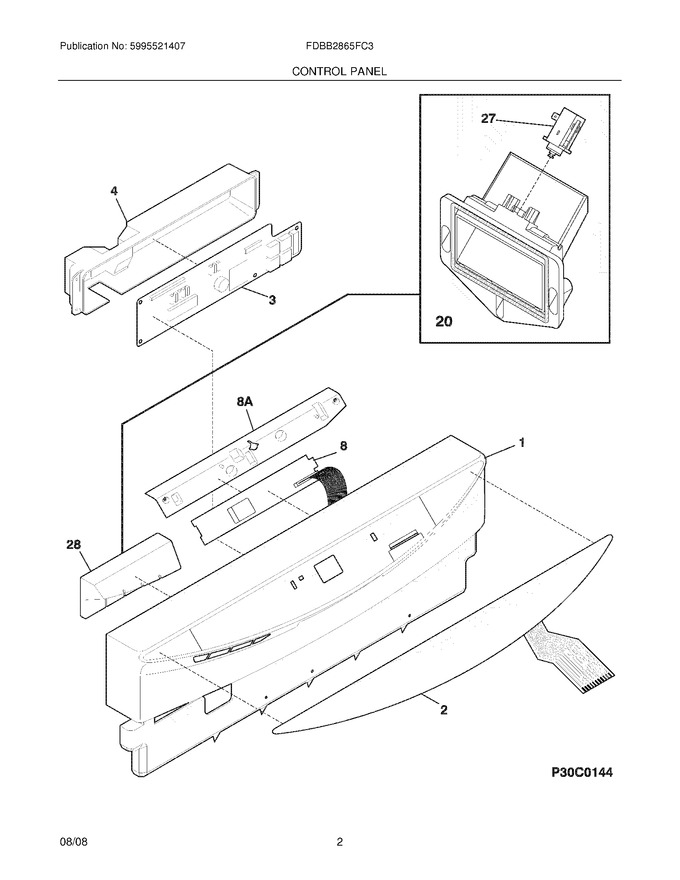

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154662403		Panel,control ,black				$ 67.04
2	154483503		Insert,control Panel ,stainless ,w/switch Memb.		Appelez-nous	-
3	154663005		Board,control   (Replaces: 154596505)				$ 286.34
4	154554601		Cover,control				$ 25.62
8	154474801		Board,segment Display				$ 164.48
20	154423601		Vent Assy,active Dry ,w/actuator				$ 198.55
27	154433501		Actuator,active Dry Vent		Appelez-nous	-
28	154474401		Adapter,vent				$ 52.92
8A	154486201		Shield,tactile Switch				$ 49.56
FNI	154646601		Wiring Harness,main				$ 177.87
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154478901		Gasket,cover				$ 61.66
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
NI	154678508		Energy Guide Label		Appelez-nous	-
