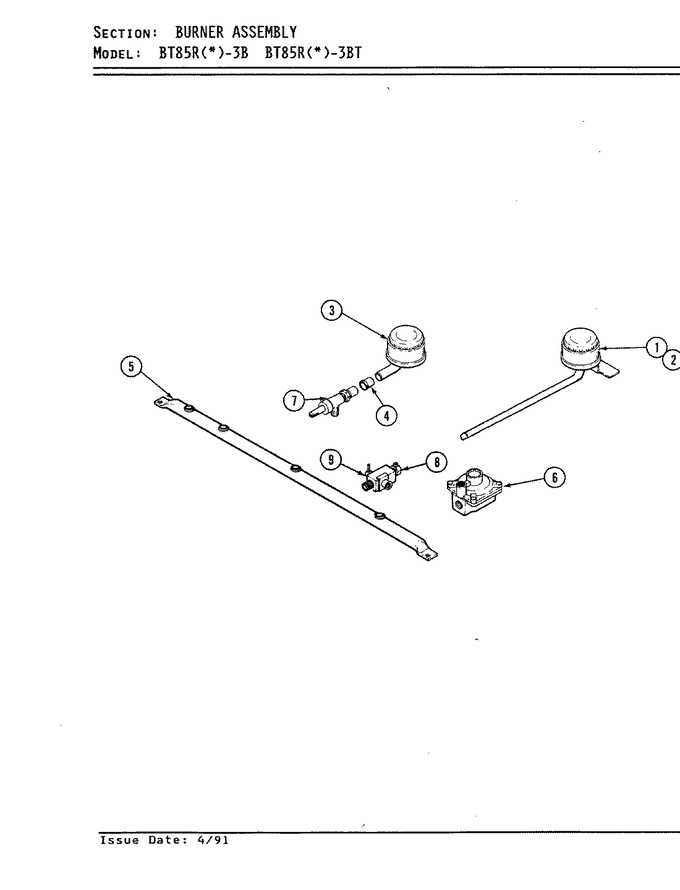

01 - Burner Assembly
02 - Main Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7505P181-60 | Burner, Top Assy. (rear) | 1 |
|
- | ||||
| 2 | 7505P181-60 | Burner, Top Assy. (rear) | 1 |
|
- | ||||
| 3 | 7505P142-60 | Burner, Assy Front | 1 |
|
- | ||||
| 4 | 7214P015-60 | Insert, Burner | 1 |
|
- | ||||
| 5 | 7513P097-60 | Pipe Manifold | 1 |
|
- | ||||
| 6 | 7510P041-60 | Regulator, Pressure | 3 |
|
- | ||||
| 6 | 7510P031-60 | Regulator, Pressure | 1-2 |
|
- | ||||
| 6 | 7507P083-60 | Fitting, Half Union | 3 |
|
- | ||||
| 6 | 7507P047-60 | Plug, Pipe | 1 |
|
- | ||||
| 6 | 7505P045-60 | Pilot Assy. | 1-2 |
|
- | ||||
| 7 | 7502P181-60 | Valve, Top Burner (5200) | 8 |
|
- | ||||
| 7 | 7502P095-60 | Valve | 1-7 |
|
- |
