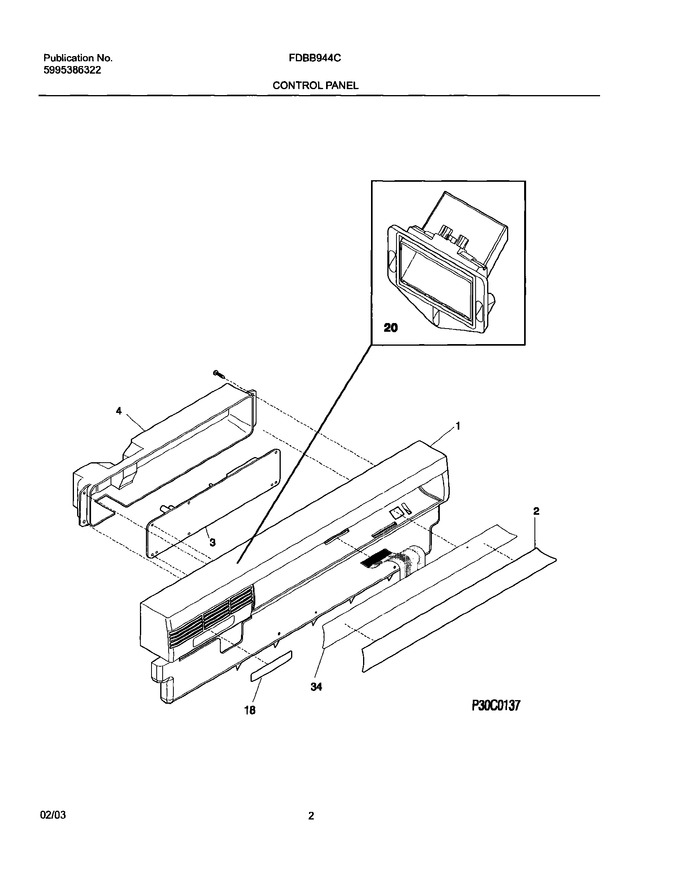

03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154370303 | Panel-control,black |
|
$ 167.74 | |||||
| 2 | 154445003 | Insert,control Panel ,black |
|
$ 88.99 | |||||
| 4 | 154287901 | Cover-control |
|
$ 182.91 | |||||
| 18 | 154422303 | Nameplate,black |
|
$ 14.70 | |||||
| 20 | 154433001 | Vent Assy,static Dry |
|
$ 50.82 | |||||
| F3 | 154445801 | Control,electronic |
|
$ 292.19 | |||||
| F34 | 154442101 | Keypad,9pad |
|
$ 318.68 | |||||
| NI | 154436201 | Screw,dry Duct ,(3) |
|
- | |||||
| NI | 154753101 | Thermistor (Replaces: 154227501) |
|
Immediately | $ 24.80 | ||||
| NI | 154399013 | Label,energy Guide |
|
- | |||||
| NI | 154283901 | Screw,no.8-10 ,3/8 Phillips |
|
$ 7.56 | |||||
| NI | 154200401 | Screw, 6-10 X 3/8, Pan Plask |
|
$ 8.56 | |||||
| NI | 154460001 | Wiring Harness,main |
|
- |
