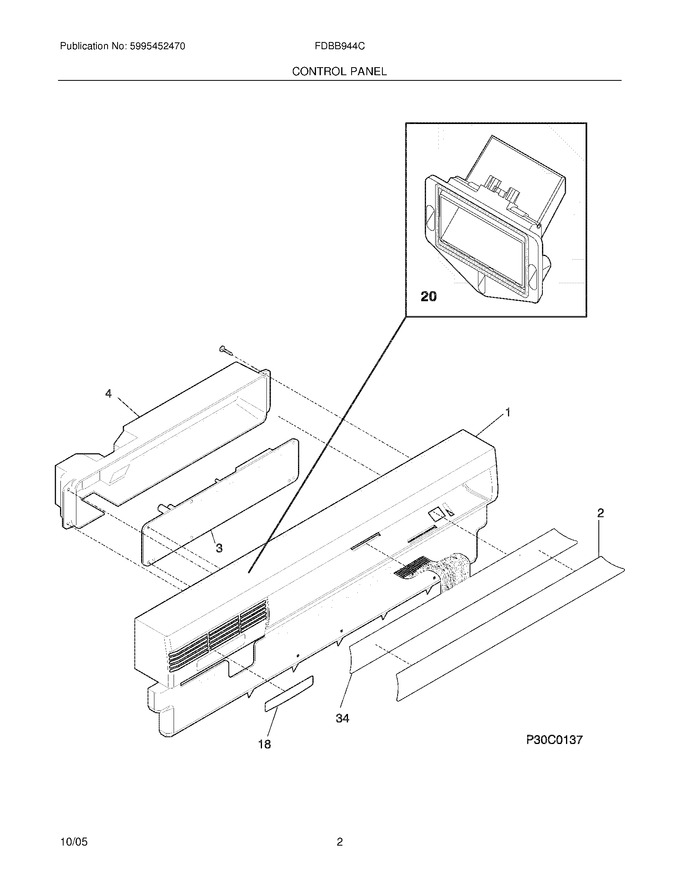

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154370301 | Panel-control,white |
|
$ 225.65 | |||||
| 2 | 154445001 | Insert,control Panel ,white |
|
$ 79.07 | |||||
| 4 | 154287901 | Cover-control |
|
$ 182.91 | |||||
| 18 | 154422301 | Nameplate,white |
|
$ 15.49 | |||||
| 20 | 154433001 | Vent Assy,static Dry |
|
$ 50.82 | |||||
| F3 | 154445801 | Control,electronic |
|
$ 292.19 | |||||
| F34 | 154442101 | Keypad,9pad |
|
$ 318.68 | |||||
| NI | 154436201 | Screw,dry Duct ,(3) |
|
- | |||||
| NI | 154753101 | Thermistor (Replaces: 154227501) |
|
Immediately | $ 24.80 | ||||
| NI | 154540014 | Energy Guide Label |
|
- | |||||
| NI | 154200401 | Screw, 6-10 X 3/8, Pan Plask |
|
$ 8.56 | |||||
| NI | 154546101 | Harness,wiring ,main |
|
- |
