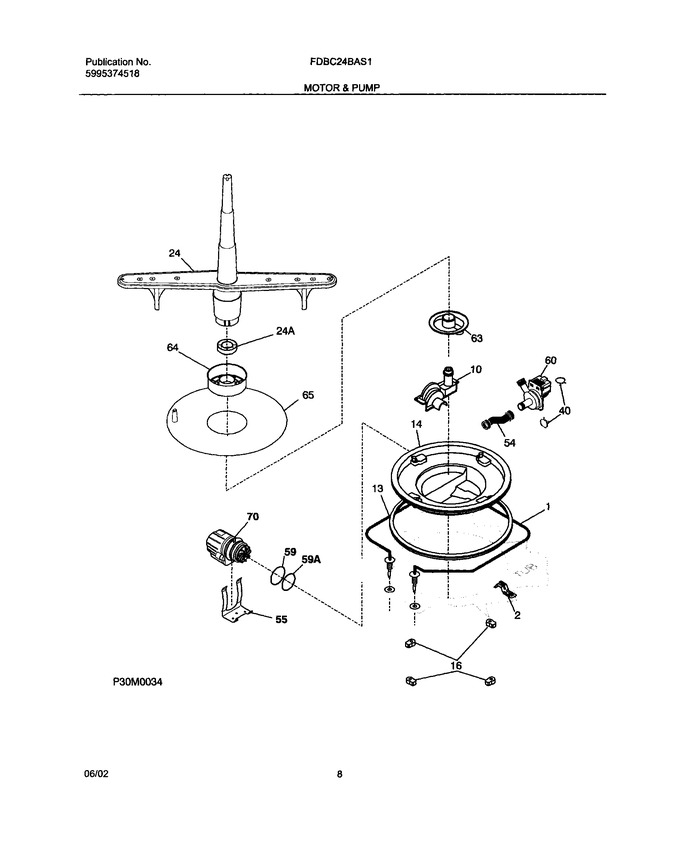

09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	154359701		Bracket,heater ,(2)		Appelez-nous	-
10	154335301		Cover-volute				$ 69.30
13	154246801		Gasket-sump				$ 52.17
14	154365903		Housing-sump				$ 137.97
16	154246502		Retainer, Sump			Immediately	$ 40.40
24	5304518927		Spray Arm,lower ,w/heat Shield   (Replaces: 154414201)			Immediately	$ 47.00
40	154348501		Clamp,silver ,pump				$ 33.02
40	154348401		Clamp,red ,pump				$ 32.96
54	154234401		Hose,connector				$ 68.68
55	5304534830		Bracket,motor ,askoll   (Replaces: 154362301)				$ 5.54
59	154246901		O-ring,rear			Immediately	$ 56.70
60	154407401		Drain Pump Assy		Appelez-nous	-
63	5304532205		Base,soil Director   (Replaces: 154252201)			Immediately	$ 13.74
64	5304532205		Filter-soil Director   (Replaces: 154332602)			Immediately	$ 13.74
65	140281806020		Filter-polypro   (Replaces: 154252401)			Immediately	$ 8.85
70	154859101		Motor Assembly,circulation ,w/o O`rings   (Replaces: 154395402)			Immediately	$ 318.47
24A	154335201		Nut,spray Arm			Immediately	$ 44.10
59A	154247001		O-ring,front			Immediately	$ 56.70
F1	154665201		Heater   (Replaces: 154247601)			Immediately	$ 78.97
NI	154234501		Bracket,motor ,drain		Appelez-nous	-
NI	5303316032		Screw,truss Ss ,8 .625				$ 10.45
NI	154380601		Clamp,hose ,(1)				$ 73.71
NI	154289801		Shield-heater Terminal				$ 7.33
NI	154106202		Nut,heater ,(2)   (Replaces: 154106201)			Immediately	$ 18.32
