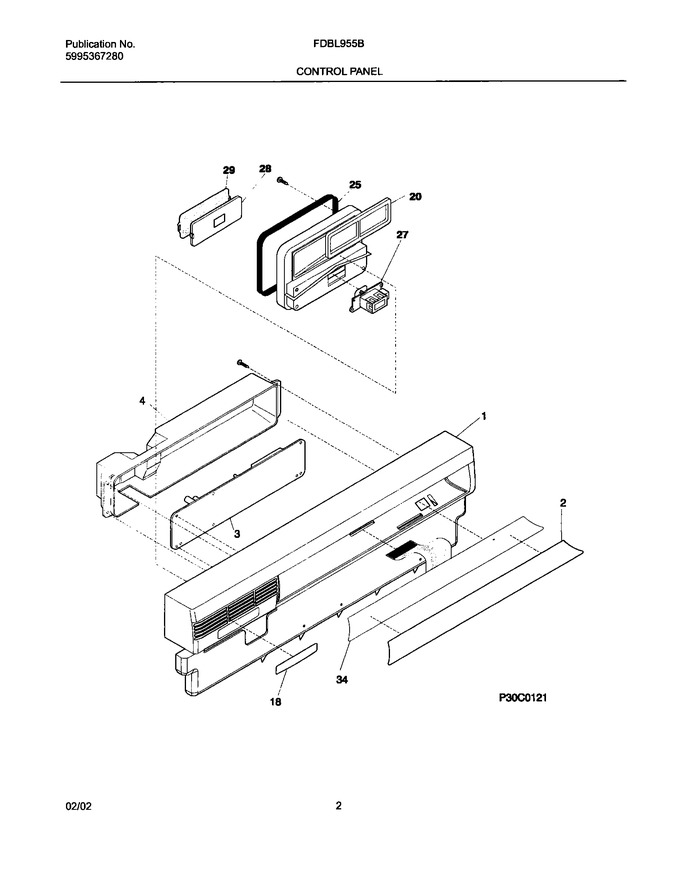

SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154370303		Panel-control,black				$ 167.74
2	154422103		Insert,control Panel ,black				$ 90.81
4	154287901		Cover-control				$ 182.91
18	154422303		Nameplate,black				$ 14.70
20	154345101		Vapor Chamber Assy,w/ Vent Gasket				$ 101.50
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
F3	154362807		Control				$ 96.86
F34	154422201		Keypad,9pad				$ 135.77
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
NI	154422401		Wiring Harness		Appelez-nous	-
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56

    View Diagram in Separate Window       Print Part List
