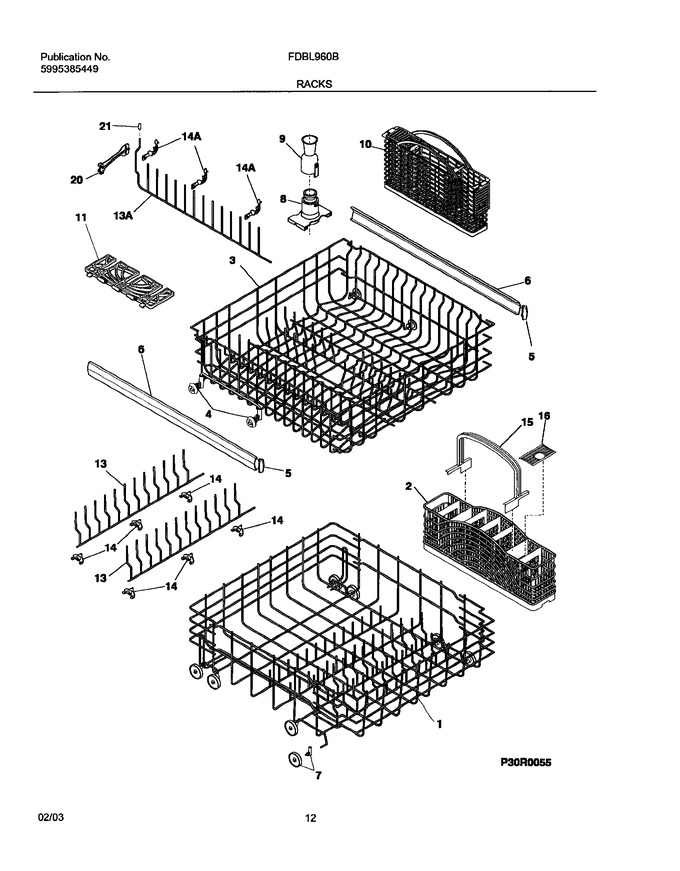

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535768 | Rack Assy,lower (Replaces: 154432603) |
|
Immediately | $ 162.61 | ||||
| 2 | 5304535382 | Basket-silverware (Replaces: 154295201) |
|
Immediately | $ 25.43 | ||||
| 3 | 154319521 | Rack Assy,upper |
|
- | |||||
| 4 | 154522902 | Wheel & Bushing Assy,upper Rack (Replaces: 5304407064) |
|
$ 39.54 | |||||
| 5 | 5300809927 | Cap,slide ,(4) |
|
Immediately | $ 3.69 | ||||
| 6 | 154597801 | Slide,rack ,(2) (Replaces: 154232701) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,lower Rack (Replaces: 154174501) |
|
Immediately | $ 12.75 | ||||
| 8 | 154728001 | Base-funnel (Replaces: 154304001) |
|
$ 27.03 | |||||
| 9 | 154251801 | Funnel |
|
$ 49.88 | |||||
| 10 | 154238801 | Basket-utility, White |
|
$ 302.77 | |||||
| 11 | 154436101 | Shelf,cup ,half Width ,white |
|
$ 55.91 | |||||
| 13 | 5304535768 | Fence,fold Down ,lower Rack ,(2) ,full Length (Replaces: 154425502) |
|
Immediately | $ 162.61 | ||||
| 14 | 154428402 | Bracket,fold Down Fence ,lower Rack ,(6) (Replaces: 154428401) |
|
Immediately | $ 25.05 | ||||
| 15 | 5304535382 | Handle,basket ,silverware (Replaces: 154254001) |
|
Immediately | $ 25.43 | ||||
| 16 | 154254101 | Cover,basket ,white ,silverware |
|
- | |||||
| 20 | 154425801 | Bracket,fence Adjust ,lh |
|
- | |||||
| 21 | 154434001 | Cap,protective |
|
- | |||||
| 13A | 154426102 | Fence,fold Down ,upper Rack |
|
- | |||||
| 14A | 154425701 | Bracket,fence ,upper Rack ,(3) |
|
- |
