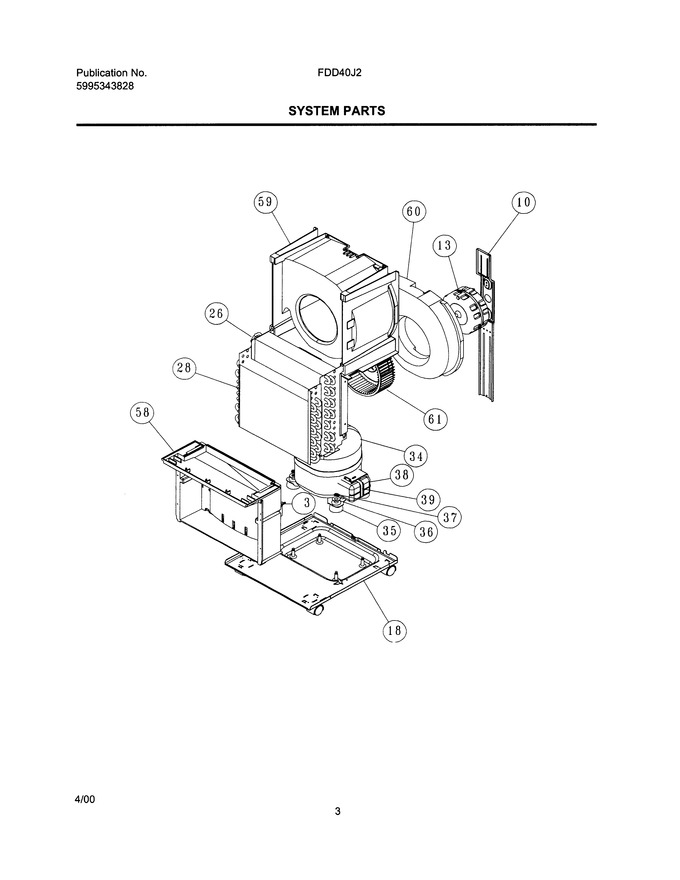

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5308016437		Switch-auto Shut Off, Bucket				$ 41.55
10	327362101		Bracket, Motor		Appelez-nous	-
13	327650407		Motor-fan, 2 Speed				$ 285.23
18	327660303		Base Plate, W/casters		Appelez-nous	-
26	327361001		Condenser		Appelez-nous	-
28	327361801		Evaporator		Appelez-nous	-
34	5304415506		Compressor		Appelez-nous	-
35	5303286606		Grommet		Appelez-nous	-
36	5303002664		Washer - Compressor		Appelez-nous	-
37	08006948		Nut-compressor		Appelez-nous	-
58	327660501		Coil Support/drip Tray		Appelez-nous	-
59	327660201		Scroll		Appelez-nous	-
60	327362001		Scroll Back		Appelez-nous	-
61	327360001		Blower Wheel		Appelez-nous	-
NI	08007481		Nut				$ 5.81
NI	327161302		Clamp-blower Wheel		Appelez-nous	-
NI	5304416308		Caster		Appelez-nous	-
NI	5304416437		Capillary Tube		Appelez-nous	-
NI	327160702		Harness-compressor		Appelez-nous	-
NI	5303273997		Overload Retainer		Appelez-nous	-
NI	5303273996		Overload				$ 66.05
NI	5303273999		Cover-terminal		Appelez-nous	-
NI	5303274000		Strap-cover Terminal		Appelez-nous	-
NI	5303273998		Relay-ptc T1 8ea401		Appelez-nous	-
NI	5304416438		Cord Power		Appelez-nous	-
