View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Front & Wrapper

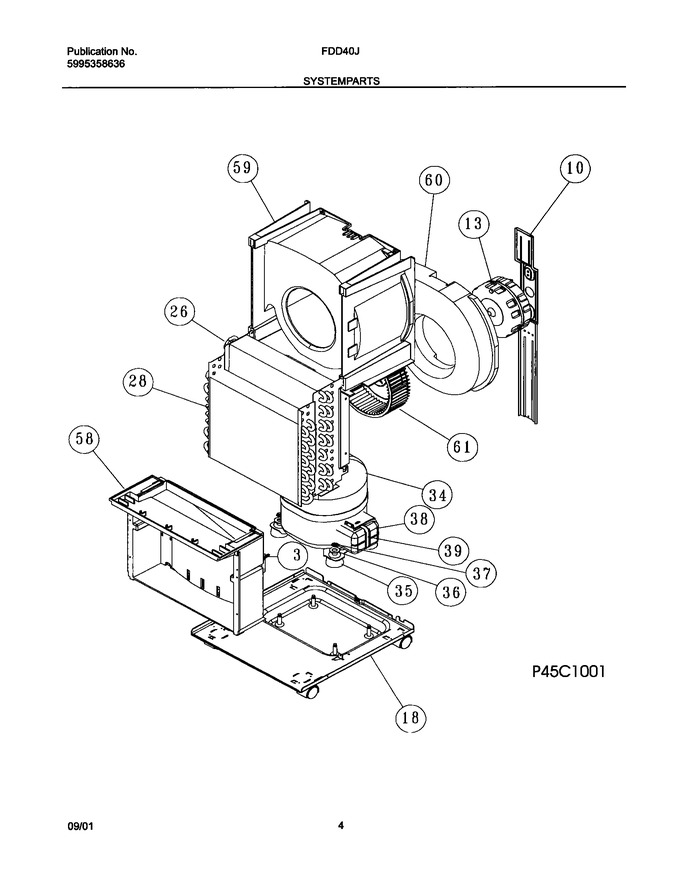

05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 327362101 | Bracket,motor Mtg |
|
- | |||||
| 18 | 327660307 | Base/stud Assy |
|
- | |||||
| 35 | 5303286606 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 36 | 5303002664 | Washer,compressor Mtg |
|
- | |||||
| 37 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 38 | 327101604 | Cover-terminal |
|
- | |||||
| 59 | 327660201 | Scroll |
|
- | |||||
| 60 | 327362001 | Scroll-back Plate |
|
- | |||||
| 61 | 327360001 | Blower Wheel |
|
- | |||||
| F13 | 327650407 | Motor,fan 2sp |
|
$ 285.23 | |||||
| F26 | 327361007 | Condenser |
|
- | |||||
| F28 | 327361403 | Evaporator |
|
- | |||||
| F3 | 5308016437 | Switch-auto Shut Off, Bucket |
|
$ 41.55 | |||||
| F34 | 327603704 | Compressor,fma80c2z |
|
- | |||||
| NI | 5304416152 | Caster,w/double Wheel |
|
- | |||||
| NI | 327364501 | Scroll-seal Assy |
|
- | |||||
| NI | 08007481 | Nut |
|
$ 5.81 | |||||
| NI | 327161302 | Clamp-blower |
|
- | |||||
| NI | 5304423505 | Starter,x |
|
- | |||||
| NI | 309112702 | Capacitor,25mfd/370vac ,plastic |
|
- | |||||
| NI | 5304416099 | Overload,4tm798sfbzz-53 |
|
$ 51.61 | |||||
| NI | 5304416438 | Cord-service |
|
- | |||||
| NI | 327160716 | Harness,2sp |
|
- | |||||
| NI | 5303290357 | Strainer |
|
- |
