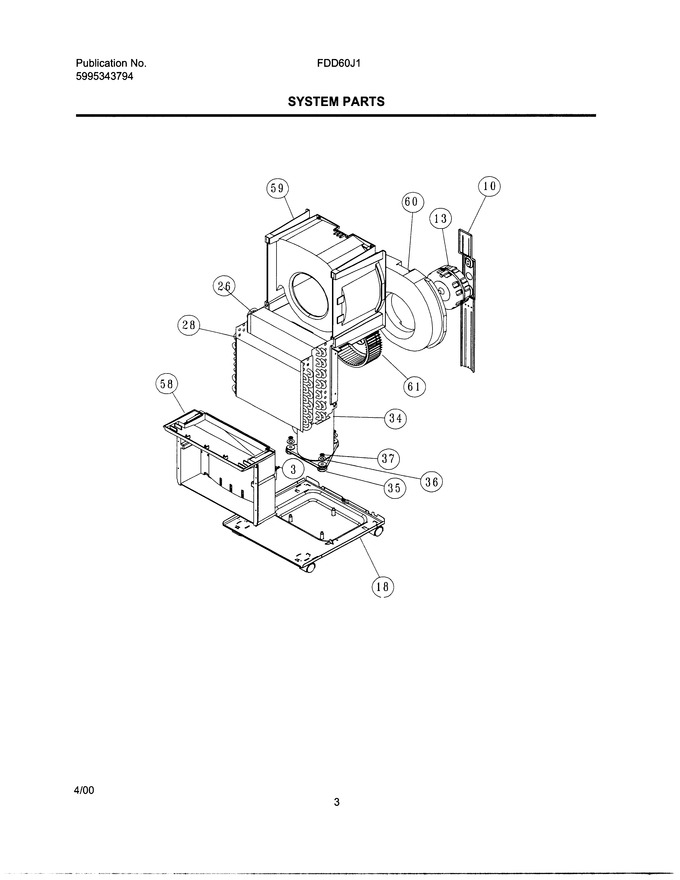

03 - System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5308016437		Switch-auto Shut Off, Bucket				$ 41.55
10	327362101		Bracket, Motor		Appelez-nous	-
13	327650408		Motor-fan 2 Speed		Appelez-nous	-
18	327660308		Base Plate, W/casters		Appelez-nous	-
26	327363201		Condenser		Appelez-nous	-
28	327361401		Evaporator		Appelez-nous	-
34	5304416101		Compressor		Appelez-nous	-
35	327160901		Grommet		Appelez-nous	-
36	327163302		Washer-compressor		Appelez-nous	-
37	08006948		Nut-compressor		Appelez-nous	-
58	327660501		Coil Support/drip Tray		Appelez-nous	-
59	327660201		Scroll		Appelez-nous	-
60	327362001		Scroll Back		Appelez-nous	-
61	327360001		Blower Wheel		Appelez-nous	-
NI	08007481		Nut				$ 5.81
NI	327161302		Clamp-blower Wheel		Appelez-nous	-
NI	5304416308		Caster		Appelez-nous	-
NI	5304410096		Capillary Tube		Appelez-nous	-
NI	327160709		Harness-compressor		Appelez-nous	-
NI	5304416103		Capacitor		Appelez-nous	-
NI	5304416102		Overload		Appelez-nous	-
NI	5304416417		Cover-terminal		Appelez-nous	-
NI	5303291330		Gasket-cover Terminal		Appelez-nous	-
NI	5303294292		Nut-cover Terminal		Appelez-nous	-
NI	5304416426		Cord Power		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
