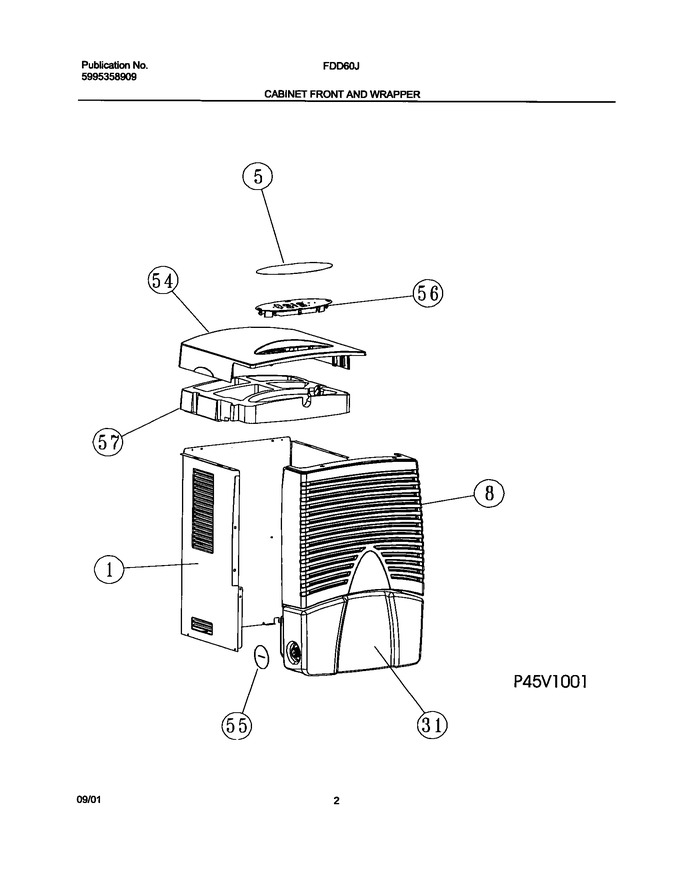

03 - Cabinet Front And Wrapper
05 - System Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327660002 | Cabinet |
|
- | |||||
| 5 | 327360501 | Overlay,rotary-2sp |
|
- | |||||
| 8 | 327661501 | Front |
|
- | |||||
| 31 | 327660701 | Bucket |
|
- | |||||
| 54 | 327661201 | Top Cap |
|
- | |||||
| 55 | 327160101 | Cap-hose |
|
- | |||||
| 56 | 327360302 | Panel-control,2sp,rotary |
|
- | |||||
| 57 | 327660402 | Cap-scroll |
|
- | |||||
| NI | 309307013 | Knob-control |
|
- | |||||
| NI | 327161101 | Button,push |
|
- | |||||
| NI | 327161201 | Switch,2 Speed |
|
- | |||||
| NI | 327362201 | Control-humidity |
|
$ 56.81 | |||||
| NI | 327660401 | Cap-scroll |
|
- | |||||
| NI | 327160002 | Indicator,light |
|
- |
