SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum


03 - Front Panel/lint Filter

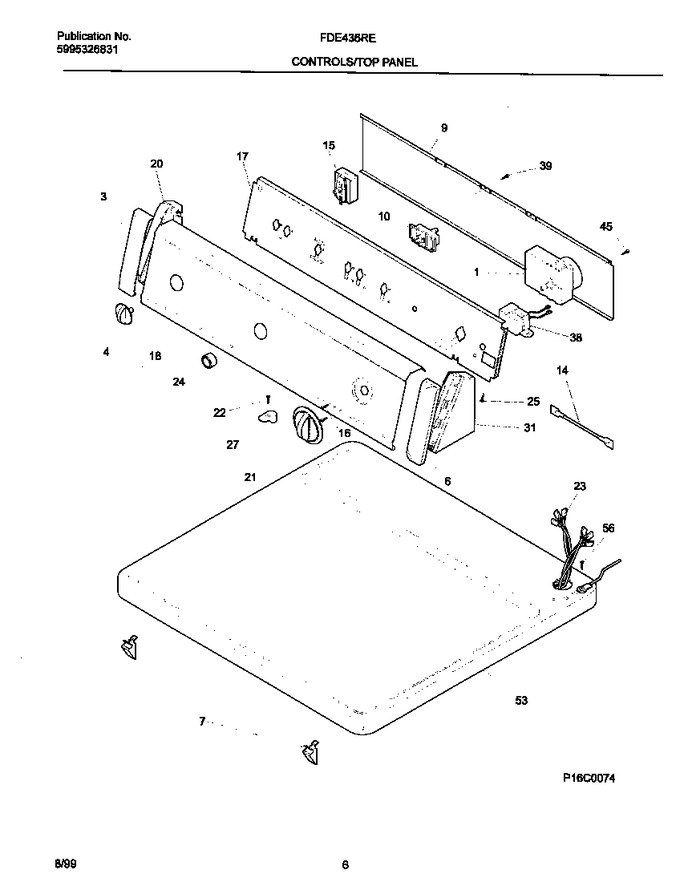

04 - Controls/top Panel


05 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303297177		Timer - Dryer				$ 229.64
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141101		Knob-rotary, White/blue		Appelez-nous	-
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	131469000		Switch-push/start			Immediately	$ 55.81
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
15	131259200		Switch, Temperature				$ 92.03
16	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-control		Appelez-nous	-
18	131280600		Panel-control-white		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	134011703		Knob-dryer Timer Wht   (Replaces: 131790001)			Immediately	$ 58.56
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131845100		Harness Wsj Elec		Appelez-nous	-
24	131111501		Button-start Switch,white				$ 13.79
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
38	5303210285		Buzzer				$ 65.78
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
45	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131601318		Panel-top White		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46

    View Diagram in Separate Window       Print Part List
