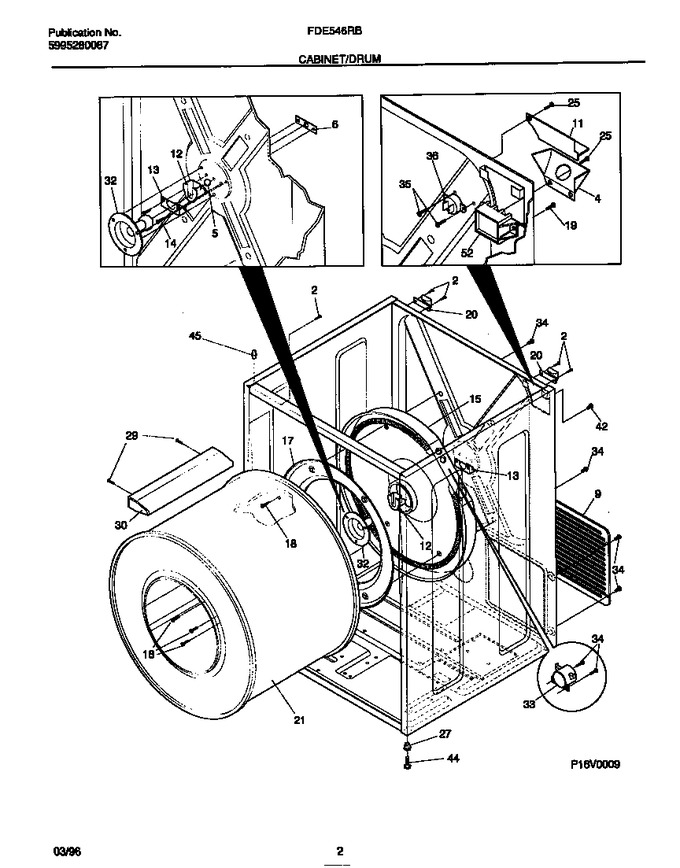

02 - Cabinet/drum
03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw, Pph B St/z, 8-18 X .31 |
|
Immediately | $ 14.18 | ||||
| 4 | 3281040 | Bracket-cord |
|
- | |||||
| 5 | 5303281019 | Ball |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip-ball |
|
$ 17.01 | |||||
| 9 | 5303281018 | Panel-access |
|
- | |||||
| 11 | 5303211428 | Cover-term Block |
|
$ 44.15 | |||||
| 12 | 131825900 | Bearing-shaft (Replaces: 5303281008) |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket-bearing (Replaces: 5303281023) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw-bracket, 10-16b X 1.375, Cr/sq Drive |
|
$ 12.76 | |||||
| 15 | 131475320 | Heater-hsg Assy (Replaces: 131475300) |
|
Immediately | $ 133.40 | ||||
| 17 | 3204254 | Baffle-heater |
|
$ 129.00 | |||||
| 18 | 131168200 | Screw-shaft & Baffle, Comb Ph Ab Spcl, 10-16 X .375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 19 | 131205300 | Screw, 10-16 X .75 |
|
Immediately | $ 12.10 | ||||
| 20 | 131332700 | Bracket-hinge |
|
- | |||||
| 21 | 3201199 | Drum-assy |
|
$ 246.86 | |||||
| 25 | 5303015671 | Screw |
|
- | |||||
| 27 | 3201202 | Grommet, Leveling Leg |
|
$ 22.47 | |||||
| 29 | 131382300 | Screw-vane, Quadrex Head, 10-14 X 1.00, Special |
|
Immediately | $ 13.46 | ||||
| 30 | 137552900 | Vane (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 32 | 131777700 | Shaft Assy (Replaces: 131378400) |
|
Immediately | $ 71.87 | ||||
| 33 | 5303281113 | Thermostat, Safety |
|
$ 93.28 | |||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive |
|
$ 3.36 | |||||
| 35 | 08010804 | Screw, Pph B St/z, 6-20 X .19 |
|
- | |||||
| 36 | 134120900 | Thermal Limiter (Replaces: 5303209192) |
|
Immediately | $ 13.21 | ||||
| 42 | 134154100 | Screw-ground Cab, Hex Washer Head, 10-32t X 0.375, Serr (Replaces: 131301100) |
|
$ 13.46 | |||||
| 44 | 5303281032 | Foot-cabinet |
|
- | |||||
| 45 | 131346400 | Pin, Locating |
|
$ 12.44 | |||||
| 52 | 134101400 | Block-terminal (Replaces: 5303937016) |
|
Immediately | $ 55.99 | ||||
| *30360 | 131353500 | Clip, Cabinet Bottom |
|
- | |||||
| *30361 | 5303281153 | Rear Bearing Kit, Includes 5, 6, 12, 13, 14, 18, 32 |
|
Immediately | $ 46.64 |
