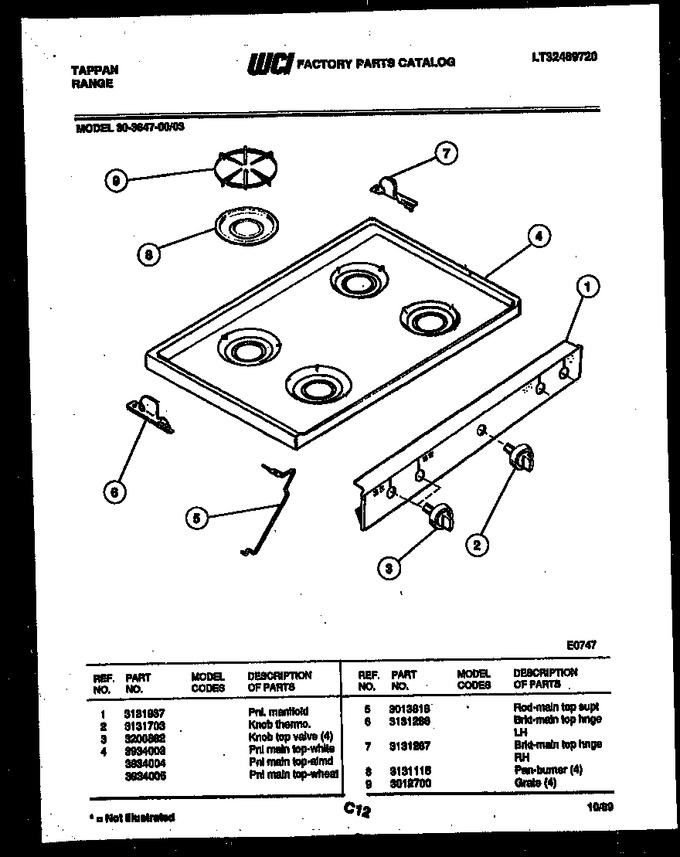

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Body Parts
07 - Burner, Manifold And Gas Control
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131937 | Pnl Manifold |
|
- | |||||
| 2 | 3131703 | Knob-thermo |
|
- | |||||
| 3 | 3200882 | Knob-top Valve (4) |
|
- | |||||
| 4 | 3934005 | Pnl Main Top (wheat) |
|
- | |||||
| 5 | 3013818 | Rod - Maintop Supt. |
|
- | |||||
| 6 | 3131286 | Brkt-main Top Hnge Lh |
|
- | |||||
| 7 | 3131287 | Brkt Main Top Hnge Rh |
|
- | |||||
| 8 | 3131115 | Pan, Burner (4) |
|
- | |||||
| 9 | 3012700 | Grate (4) |
|
- |
