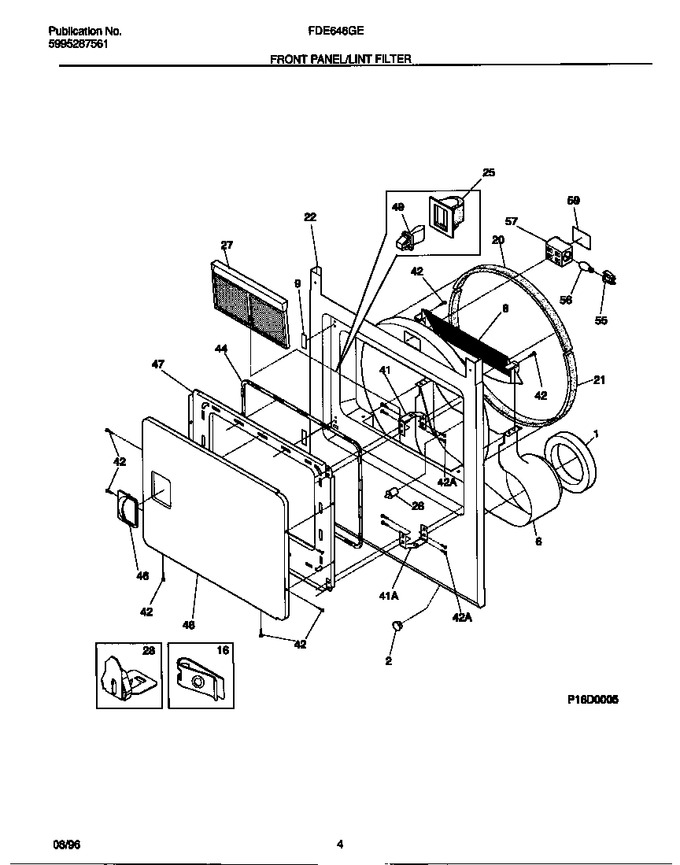

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal-air Duct   (Replaces: 131581400)			Immediately	$ 9.22
2	131397000		Plug-white   (Replaces: 131432300)				$ 14.12
6	131377200		Duct-air		Appelez-nous	-
8	131450400		Cover-lint Trap		Appelez-nous	-
9	131418300		Cover-hinge Holes		Appelez-nous	-
16	131063700		Clip-wiring				$ 18.11
20	DE790		Glide-drum   (Replaces: 5303937123)			Immediately	$ 40.53
21	5303283286		Seal-basket Lower				$ 48.04
22	131377420		Panel-front, White		Appelez-nous	-
25	5366021400		Catch, Door   (Replaces: 5307521419)			Immediately	$ 55.99
26	08006623		Switch, Door		Appelez-nous	-
27	131450300		Lint Trap			Immediately	$ 30.47
28	5303281074		Clip-guide,(3)				$ 18.27
41	3204276		Hinge-lower		Appelez-nous	-
41	3204275		Hinge-upper				$ 62.95
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
42	134154100		Screw-ground Cab,hex Washer Head ,10-32t X 0.375,serrated Head   (Replaces: 131301100)				$ 13.46
42	3205239		Screw-hinge, Splnd Ab St/c, 10.16 X 0.50		Appelez-nous	-
44	137551901		Gasket-door   (Replaces: 131129900)			Immediately	$ 41.00
46	131644700		Handle-door, White   (Replaces: 131484400)			Immediately	$ 59.54
47	131376704		Door-inner, White		Appelez-nous	-
48	131376804		Panel-outer Door, White		Appelez-nous	-
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 19.85
55	131843500		Receptacle-lamp   (Replaces: 131381500)				$ 73.00
56	131843500		Lamp   (Replaces: 5303212868)				$ 73.00
57	131843500		Holder-lamp   (Replaces: 131466200)				$ 73.00
59	131843500		Cover-lamp   (Replaces: 131466300)				$ 73.00
*22481	131598101		Shield-heat		Appelez-nous	-
