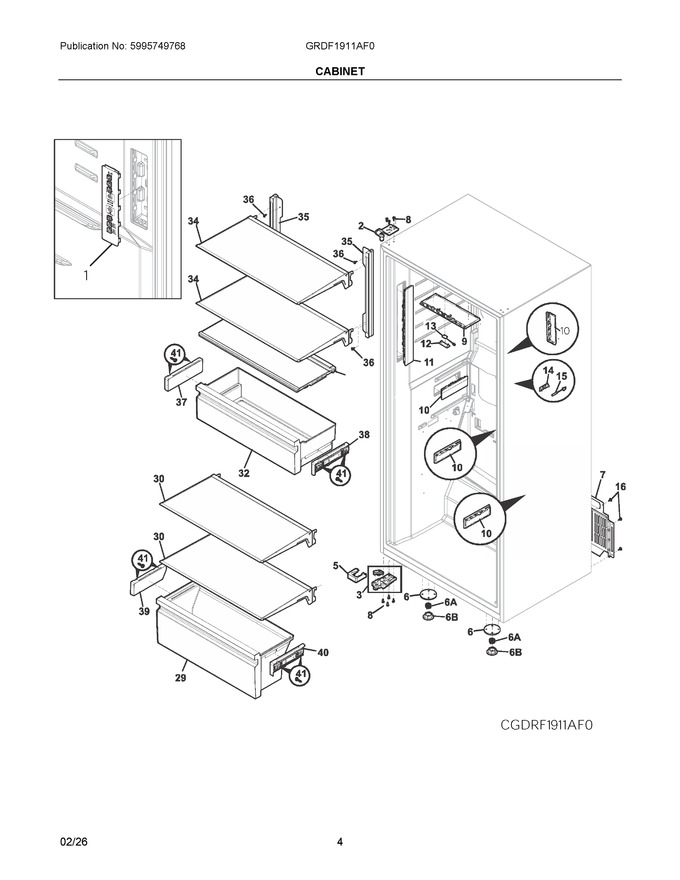

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140243237033 | User Interface Board, Assembly, Side |
|
- | |||||
| 2 | 5304524637 | Hinge, Door, Lh Upper |
|
$ 176.97 | |||||
| 3 | 5304525229 | Hinge Assembly, Lower, Lh |
|
Immediately | $ 72.05 | ||||
| 5 | 5304525228 | Cover, Hinge, Lh Lower |
|
$ 10.85 | |||||
| 6 | 5304528813 | Base, Leveler Leg, Front |
|
Immediately | $ 15.51 | ||||
| 7 | 5304525858 | Cover, Access, Machine Compt. |
|
$ 55.67 | |||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.08 | ||||
| 9 | 5304530715 | Light Assembly, Led, Wide Double, W/lens |
|
Immediately | $ 75.83 | ||||
| 10 | 5304530711 | Light Assembly, Led, Single, W/lens |
|
Immediately | $ 47.19 | ||||
| 11 | 5304530717 | Light Assembly, Led, Triple, W/lens |
|
Immediately | $ 88.46 | ||||
| 12 | 5304524761 | Cover, Reed Switch |
|
$ 10.85 | |||||
| 13 | 5304527992 | Switch, Reed (Replaces: 242326001) |
|
Immediately | $ 81.69 | ||||
| 14 | 5304524759 | Cover, Sensor |
|
$ 10.85 | |||||
| 15 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 23.74 | ||||
| 16 | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| 29 | 140130103058 | Drawer Assembly, Lower, Full Width |
|
- | |||||
| 30 | 140295136018 | Glass Shelf, Assembly |
|
- | |||||
| 32 | 140130079191 | Drawer Assembly, Upper, Fresh Food, Plastic Trim |
|
- | |||||
| 33 | 140266479033 | Crisper Cover, Assembly, W/glass |
|
- | |||||
| 34 | 140129017053 | Glass Shelf, Assembly, W/trim |
|
- | |||||
| 35 | 5304539145 | Rail, Shelf Support |
|
- | |||||
| 36 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 37 | 5304524850 | Slide Assembly, 9-inch, Lh |
|
$ 91.82 | |||||
| 38 | 5304524849 | Slide Assembly, 9-inch, Rh |
|
$ 91.09 | |||||
| 39 | 5304524852 | Slide Assembly, 8-inch, Lh |
|
$ 87.48 | |||||
| 40 | 5304524851 | Slide Assembly, 8-inch, Rh |
|
$ 87.48 | |||||
| 41 | 5304524845 | Screw, Quad Hilo, 4.2x1.41x15.9, Slide Mtg |
|
Immediately | $ 2.89 | ||||
| 6A | 5304528814 | Nut, Leg Leveler |
|
Immediately | $ 8.68 | ||||
| 6B | 5304528815 | Foot, Leg Leveler |
|
Immediately | $ 10.13 | ||||
| NI | 5304525288 | Screw, Shoulder, M4.2 Hi-lo Qdrx |
|
$ 2.28 | |||||
| NI | 5304534034 | Screw, Type Ab, #10-16 |
|
- |
