Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
2	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 30.52
3	WPW10297485		Screw   (Replaces: W10297485)				$ 8.40
4	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.92
5	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
6	W10499011		Bracket, Wire Mounting			Immediately	$ 69.65
7	W11293072		Tube, Drain				$ 34.60
8	W11266052		Bracket, Foot   (Replaces: W10900758)				$ 66.31
9	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 8.24
10	W11579735		Screw, Top Hinge   (Replaces: W10290781)			Immediately	$ 14.73
11	W11758895		Single Water Valve   (Replaces: W11454773)				$ 102.89
12	W11590581		Hinge, Freezer Top (grey)   (Replaces: W10901054)			Immediately	$ 24.93
13	W11409290		Hinge, Refrigerator Top (grey)   (Replaces: W10901049)			Immediately	$ 70.48
14	WPW10308489		Screw (grey)   (Replaces: W10308489)			Immediately	$ 8.18
15	W11293374		Hinge, Freezer Bottom (grey)   (Replaces: W11126848)				$ 73.32
16	W11292872		Hinge, Refrigerator Bottom (grey)   (Replaces: W11084346)				$ 72.09
17	W11311687		Closer, Refrigerator Door (grey)   (Replaces: W10877804)				$ 14.07
18	W10876191		Closer, Freezer Door (grey)   (Replaces: W10770893)				$ 17.98
19	W11234470		Clamp, Plastic				$ 22.12
20	W11758892		Cover, Unit   (Replaces: W11654098)		Appelez-nous	-
21	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 8.07
22	WPW10713153		Grille, Grey   (Replaces: W10713153)			Immediately	$ 135.52
23	WP489483		Screw   (Replaces: W10142234)				$ 11.41
24	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
26	W11759314		Tube, Filter Inlet   (Replaces: W11618931)				$ 94.46
27	W11759315		Tube, Filter Outlet   (Replaces: W11618945)				$ 91.27
28	W10370680		Fitting, Drain				$ 37.83
29	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 85.16
30	W11847296		Control, Electronic   (Replaces: W11705242)				$ 267.83
31	ARI8576EDE2D568F203CA1E28095884C084		Cabinet (not A Serviceable Part)		Appelez-nous	-
32	WP488488		Screw   (Replaces: 489290)				$ 8.52
33	W11545866		Clip, Axle Retainer   (Replaces: 2223388)				$ 11.88
34	W11758894		Valve, Dual Water   (Replaces: W11454780)				$ 102.89
35	WPW10238092		Tube, Water   (Replaces: W10691732)			Immediately	$ 132.24
36	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 14.89
37	W11759313		Bracket, Dual Water Valve   (Replaces: W11713545)		Appelez-nous	-
	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 14.90

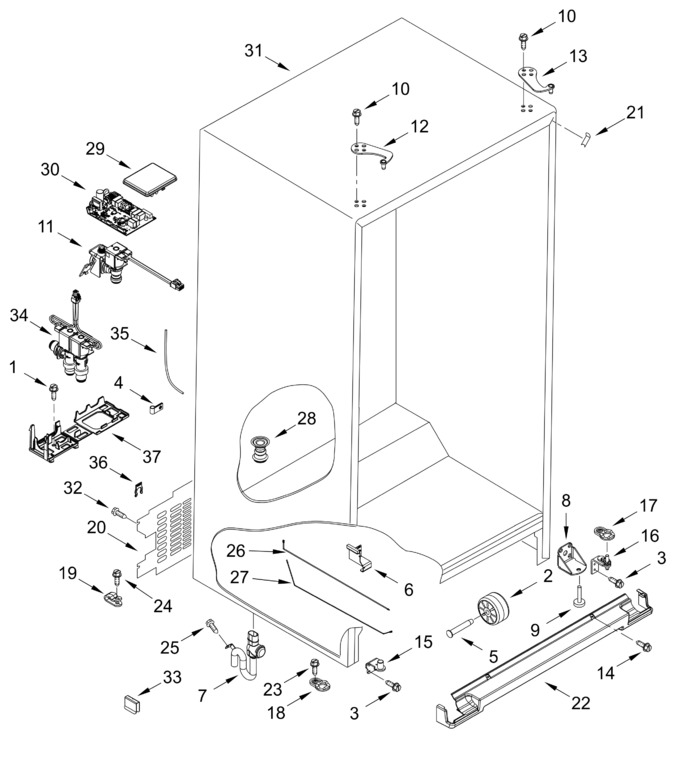

    View Diagram in Separate Window       Print Part List
