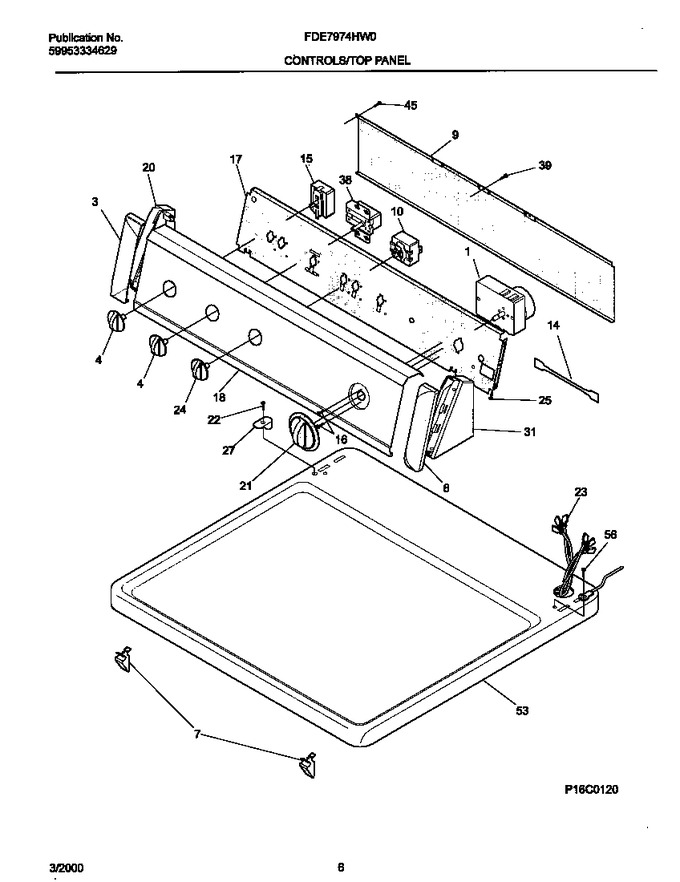

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer			Immediately	$ 269.37
3	131122610		Cover-end Cap,black ,lh		Appelez-nous	-
4	131858004		Knob-rotary,blk/blue   (Replaces: 131141100)			Immediately	$ 55.29
6	131122600		Cover-end Cap,black ,rh		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
15	131048100		Switch, Temperature		Appelez-nous	-
16	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-control		Appelez-nous	-
18	131935500		Trimplate Fde/b7prhf-7		Appelez-nous	-
20	131122710		End Cap,black ,lh				$ 94.19
21	134011703		Knob-timr-blk/blue Ind Ultra   (Replaces: 131790000)			Immediately	$ 58.56
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131845500		Harness Prh Elec		Appelez-nous	-
24	131111500		Knob-start Switch, Black				$ 13.55
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122700		End Cap,black ,rh				$ 104.90
38	131048300		Buzzer		Appelez-nous	-
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
45	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131601318		Panel-top White		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
