View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
05 - Wiring Diagram
New Model Search:

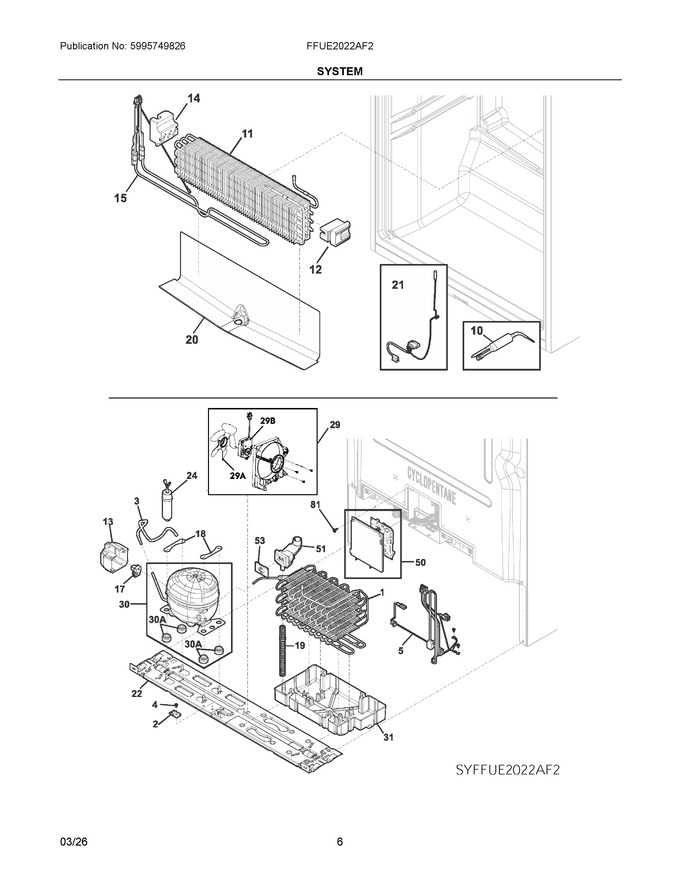

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304530007 | Condenser, Dynamic |
|
Immediately | $ 87.62 | ||||
| 2 | 5304454459 | Clamp, Cable |
|
- | |||||
| 3 | 5304519693 | Tube, Suction Jumper |
|
$ 31.10 | |||||
| 4 | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| 5 | 5304531478 | Harness, Wiring, Machine Comprt |
|
$ 53.03 | |||||
| 10 | A19676501 | Dryer Assembly, Filter (Replaces: 5304522277) |
|
Immediately | $ 99.73 | ||||
| 11 | 5304523830 | Evaporator, Coil |
|
Immediately | $ 143.67 | ||||
| 12 | 5304523831 | Support, Evaporator, Rh |
|
$ 3.62 | |||||
| 13 | 5304522303 | Cover, Electricals, 19, Compressor |
|
- | |||||
| 14 | 5304530284 | Support, Evaporator, Lh |
|
- | |||||
| 15 | 5304524953 | Heater, Defrost |
|
Immediately | $ 165.56 | ||||
| 17 | 5304537473 | Starter, Compressor |
|
$ 25.88 | |||||
| 18 | 5304524607 | Clamp, Compressor |
|
$ 2.89 | |||||
| 19 | 5304525042 | Tube, Drain, Extension |
|
Immediately | $ 9.86 | ||||
| 20 | 5304524755 | Trough, Drain, Evaporator |
|
$ 51.34 | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 38.56 | ||||
| 22 | 5304523693 | Base Assembly, Compressor, W/rollers |
|
- | |||||
| 24 | 5304530011 | Capacitor, 24 # |
|
Immediately | $ 27.86 | ||||
| 29 | 5304535399 | Condenser Fan, Assembly, 29 #, W/shroud |
|
$ 94.28 | |||||
| 30 | 5304539561 | Compressor Assembly, Th1114hy Mx |
|
$ 154.40 | |||||
| 31 | 5304519674 | Pan, Drain |
|
$ 39.47 | |||||
| 50 | 5304539562 | Main Electronic Board, W/housing, Erf300 |
|
- | |||||
| 51 | 5304530111 | Drain Jumper, Assembly, W/seal |
|
$ 19.52 | |||||
| 53 | 5304525744 | Cover, Drain Jumper |
|
$ 9.68 | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 29A | 8582416395027 | Blade, Condenser Fan |
|
- | |||||
| 29B | 5304539496 | Motor, Condenser Fan (Replaces: 5304531260) |
|
$ 56.33 | |||||
| 30A | 811978901 | Grommet, Compressor |
|
- | |||||
| NI | 30534600 | Clip, Plastic, W/adhesive |
|
$ 3.79 | |||||
| NI | 5304523302 | Clip, Wiring Harness, Plastic, W/adhesive |
|
- | |||||
| NI | 240569202 | Screw, 8-18 X .500 |
|
$ 2.12 | |||||
| NIA | 140140613013 | Roller, Rear, Hinge, Bottom |
|
- |
