01 - Cover Sheet


02 - Control Panel

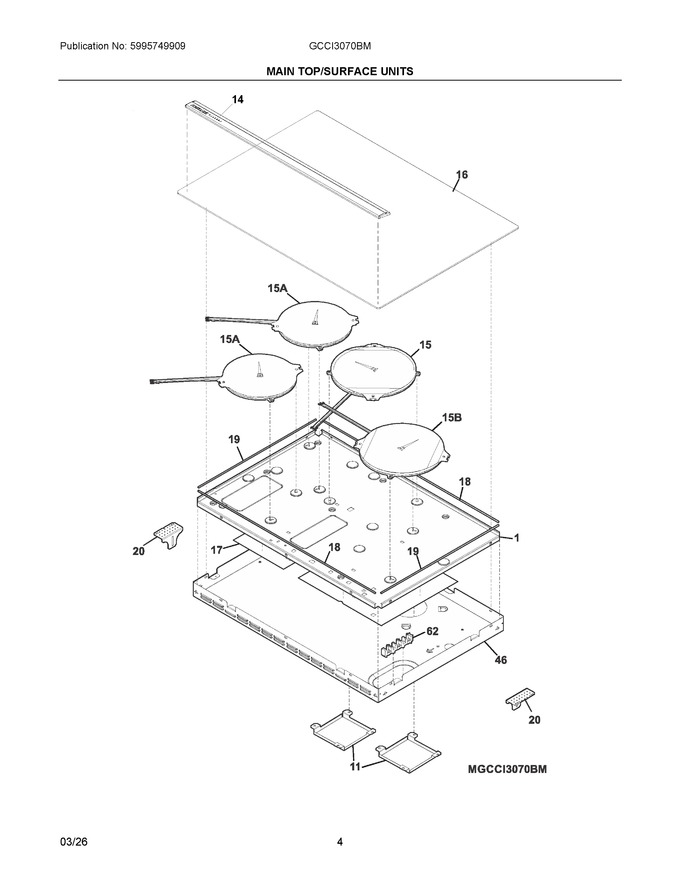

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304531649		Carrier, Induction Coils		Appelez-nous	-
11	5304527609		Cover, Fan		Appelez-nous	-
14	5304531654		Trim Assembly, Front, Stainless, W/tape				$ 144.70
15	357227574		Element, Induction Coil, 210 Mm				$ 202.48
16	140211996107		Maintop, Assembly, Black		Appelez-nous	-
17	5304531648		Insulation, Mica Sheet		Appelez-nous	-
18	5304531770		Tape, Maintop, 30				$ 256.38
19	5304531771		Tape, Maintop, Sides				$ 255.77
20	5304538915		Bracket, Installation, Granite Counter   (Replaces: 5304527624)			Immediately	$ 5.41
46	140265068019		Outer Box, 30		Appelez-nous	-
62	5304535277		Terminal Block			Immediately	$ 3.96
15A	357226372		Element, Induction Coil, 180 Mm				$ 164.16
15B	357249669		Element, Induction Coil, 210mm				$ 180.50
NI	8587320115205		Screw, 8-18x5		Appelez-nous	-
NI	140210818021		Cover, Box Cable		Appelez-nous	-
NI	140173652037		Box Cable		Appelez-nous	-
NI	305309704		Screw, St, 4.2 : 12, (9)		Appelez-nous	-
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NIA	305309608		Screw, M4		Appelez-nous	-
NIB	305376201		Nut, Terminal Block, (2)		Appelez-nous	-
NIC	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
