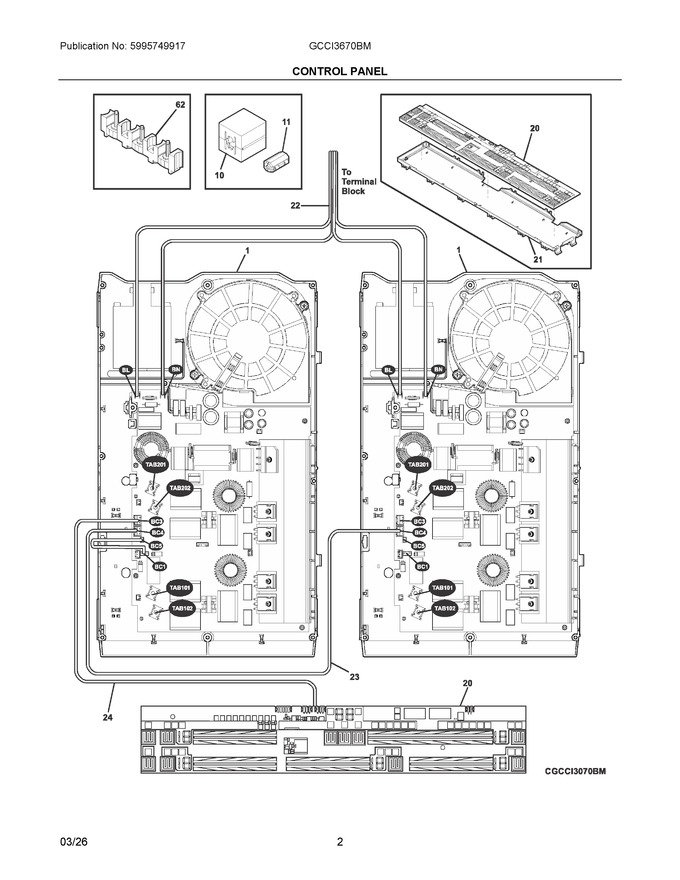

02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140115392619		Generator Board, Rh			Immediately	$ 404.38
10	5304506076		Filter, Ferrite Choke			Immediately	$ 42.01
11	5304514339		Filter, Ferrite Choke			Immediately	$ 39.95
20	561940472		User Interface, Control, Assembly				$ 133.98
21	561630814		Carrier, User Interface				$ 55.67
22	5304527627		Harness, Wiring, Main			Immediately	$ 163.10
23	318578332		Harness, Wiring, Communication, Generators			Immediately	$ 54.35
24	5304531655		Harness, Wiring, Communication, Ui To Generator				$ 7.79
62	5304535277		Terminal Block			Immediately	$ 3.96
NI	387540300		Bridging Plug, Dummy Ntc, B81, Center Gen.				$ 3.84
NI	5304527623		Harness Assembly, Emc Filter, W/capacitors				$ 88.60
NI	5304527611		Filter Assy, Grounding, W/toroid		Appelez-nous	-
NI	305309704		Screw, St, 4.2 : 12, (9)		Appelez-nous	-
NI	318578302		Wire, Jumper, Generator, Bc1				$ 18.43
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NIA	305309608		Screw, M4		Appelez-nous	-
NIB	305376201		Nut, Terminal Block, (2)		Appelez-nous	-
NIC	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
