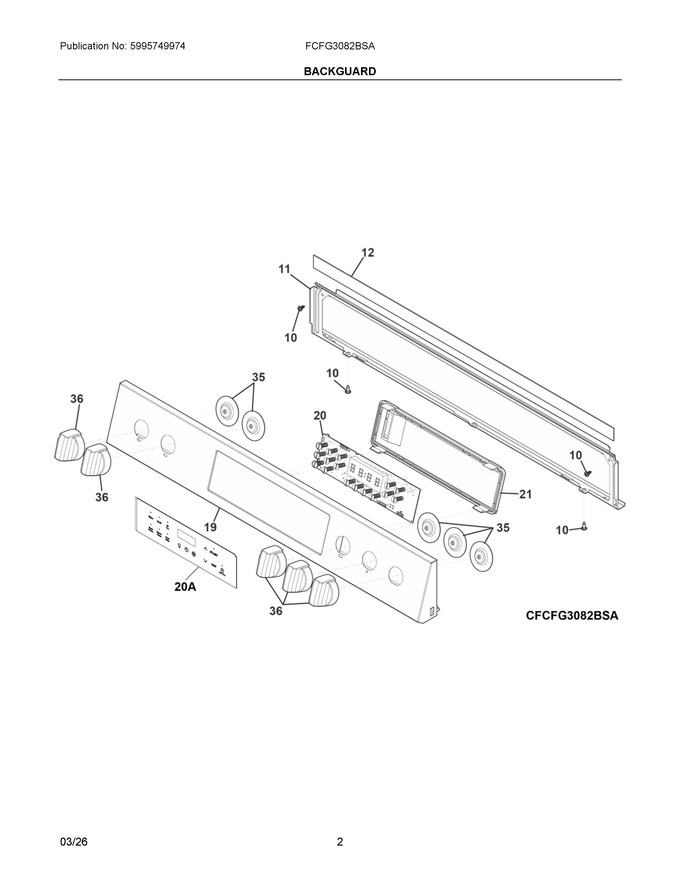

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304534089		Seal, Maintop Panel		Appelez-nous	-
19	140199546502		Control Panel Assembly, Gas		Appelez-nous	-
20	140284300039		Controller, Electronic, Gas		Appelez-nous	-
21	140296620010		Cover, Controller		Appelez-nous	-
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
36	5304509064		Knob, Stainless				$ 66.74
20A	140252713106		Overlay, User Interface		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
