01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram

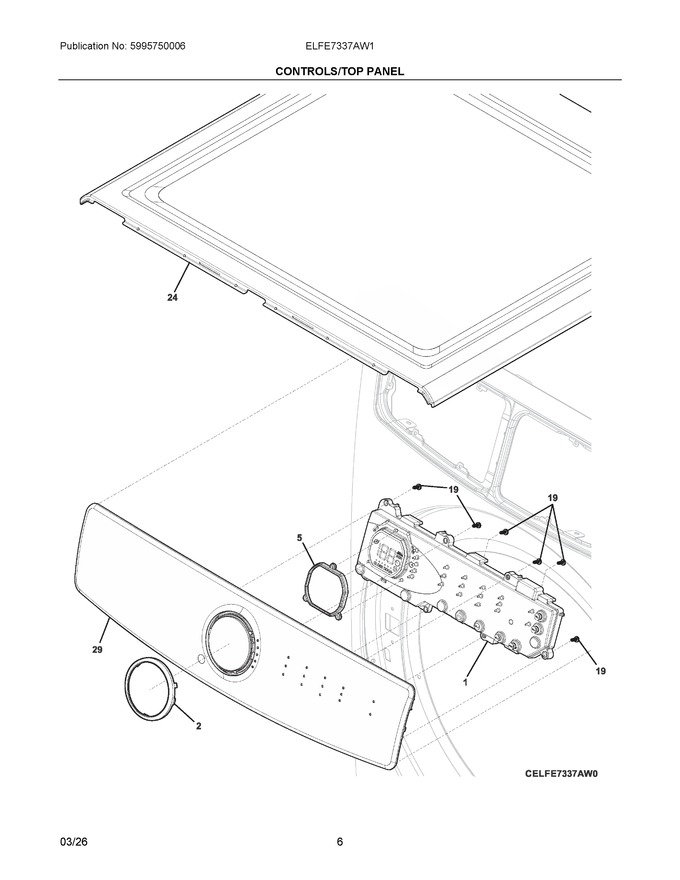

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529946		Board Assembly, Ui Linear, W/housing-screw			Immediately	$ 191.58
2	5304505044		Trim, Ring, Chrome				$ 38.26
5	5304505045		Seal, Display Area		Appelez-nous	-
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
24	5304535900		Work Top, White		Appelez-nous	-
29	5304529699		Console Assembly, W/overlay				$ 112.29
NI	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
NI	5304529731		Harness, Wiring, Main				$ 180.92
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
NI	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
NI	137150200		Terminal Block Kit, Main				$ 31.90

    View Diagram in Separate Window       Print Part List
