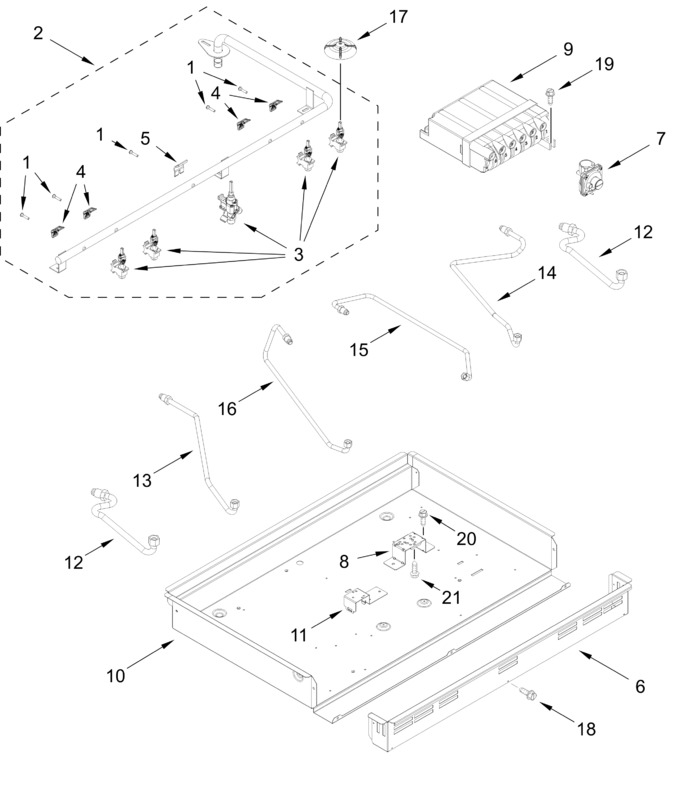

Burner Box, Gas Valves And Switch Parts


Cooktop, Burner And Grate Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 10.15
2	W11706298		Pipe Manifold Assembly   (Replaces: W11673573)			Immediately	$ 319.24
3	W11702872		Valve, Single   (Replaces: W11629615)				$ 26.90
4	8287055		Bracket, Single Valve				$ 65.54
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W11816797		Panel, Front   (Replaces: W11733903)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
8	W10594429		Bracket, Orifice Holder				$ 20.00
9	WPW10475150		Module, Spark   (Replaces: W10475150)			Immediately	$ 219.54
10	W10710916		Box, Burner		Appelez-nous	-
11	W10545802		Bracket, Dual Burner				$ 19.29
12	W10545796		Tubing, Gas Burner				$ 70.85
13	W10545797		Tubing, Gas Burner				$ 70.60
14	W10545798		Tubing, Gas Burner				$ 75.20
15	W10545801		Tubing, Gas Burner				$ 71.31
16	W10545800		Tubing, Gas Burner				$ 71.30
17	W11768651		Seal, Switch Shaft   (Replaces: W11721446)				$ 17.40
18	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
19	7101P62660		Screw		Appelez-nous	-
20	W10443110		Screw			Immediately	$ 13.07
21	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 12.65
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	W11702873		Valve, Single   (Replaces: W11629616)				$ 26.00
	ARI331AC8E6A0B32951011383800D6FC3B6		(left Front, Right Front)		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	ARI21C1DD9D0C4E911A98BB47CF70C5CADE		(center, Simmer)		Appelez-nous	-
	ARI49E663DFAFB84573D04F471B990095BA		(center, Main)		Appelez-nous	-
	W11706266		Valve, Dual   (Replaces: W11629618)			Immediately	$ 114.08
	W11703063		Valve, Single   (Replaces: W11629617)				$ 26.00
