SELECT A DIAGRAM
Burner Box, Gas Valves And Switch Parts

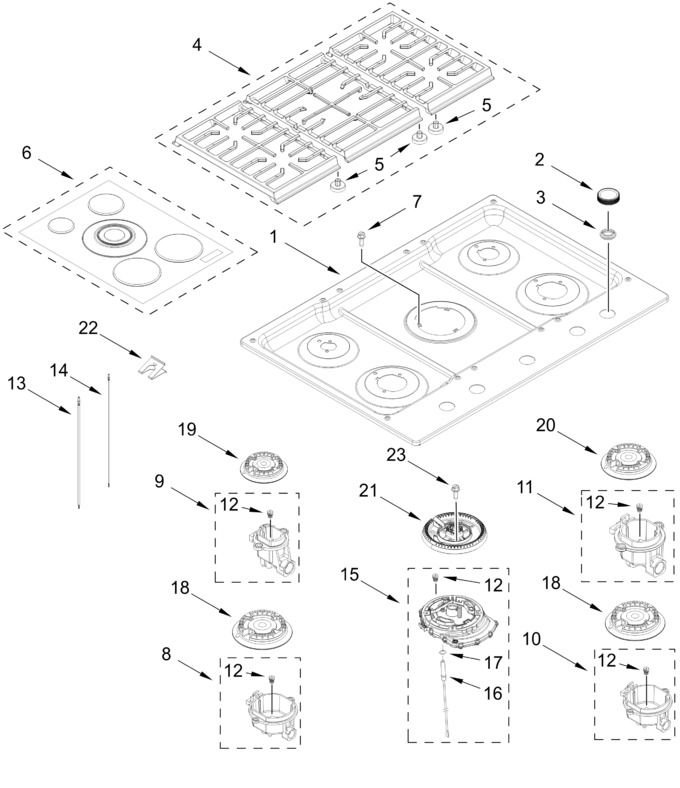

Cooktop, Burner And Grate Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11836886 | Cooktop (black Ore) (Replaces: W11766749) |
|
- | |||||
| 2 | W11821254 | Knob, Cooktop (black Ore) (Replaces: W11789716) |
|
- | |||||
| 3 | W11821265 | Bezel (black) (Replaces: W11757480) |
|
- | |||||
| 4 | W11815319 | Grate Assembly (black, Includes 3 Grates) (Replaces: W11744420) |
|
- | |||||
| 5 | W11755054 | Bumper, Grate (Replaces: W10703465) |
|
- | |||||
| 6 | W11815317 | Burner Cap Kit (black) (Replaces: W11750380) |
|
- | |||||
| 7 | W11699921 | Screw (Replaces: W10758282) |
|
$ 12.66 | |||||
| 8 | W10674921 | Holder, Orifice (12k) |
|
$ 66.47 | |||||
| 9 | W10674918 | Holder, Orifice (6k) |
|
Immediately | $ 28.02 | ||||
| 10 | W10674920 | Holder, Orifice (10k) |
|
$ 34.67 | |||||
| 11 | W10674919 | Holder, Orifice (7k) |
|
$ 30.08 | |||||
| 12 | ARIE067872F6F52DD2FD69D26241530A01D | Orifice (not Serviced, Must Order Orifice Holder Assembly) |
|
- | |||||
| 13 | W11507531 | Wiring, Electrode (Replaces: W11439331) |
|
$ 52.13 | |||||
| 14 | W11507532 | Wiring, Electrode (Replaces: W11439332) |
|
Immediately | $ 52.19 | ||||
| 15 | WPW10639175 | Assembly, Burner Base (20k) (Replaces: W10639175) |
|
Immediately | $ 248.90 | ||||
| 16 | W11610134 | Electrode, Burner (Replaces: W10657994) |
|
Immediately | $ 26.78 | ||||
| 17 | W10416057 | O-ring |
|
$ 66.97 | |||||
| 18 | WP8286815 | Head, Burner (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| 19 | WP8286813 | Head, Burner (Replaces: 8286813) |
|
$ 85.50 | |||||
| 20 | WP8286814 | Head, Burner (Replaces: 8286814) |
|
$ 106.79 | |||||
| 21 | W10836409 | Spreader, Burner (Replaces: W10808715) |
|
Immediately | $ 115.45 | ||||
| 22 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 23 | W11226732 | Screw (Replaces: W10635368) |
|
Immediately | $ 12.64 | ||||
| ARI3770015A4B07CA67C806D98841D12734 | (used For Tie Down Bracket) |
|
- | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| W11815324 | Lp Orifice Conversion Kit (Replaces: W11745849) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11706256 | Harness, Switch (Replaces: W11632148) |
|
$ 69.42 | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| 3801F93551 | Bracket, Tie Down |
|
- | ||||||
| 7101P06260 | Screw |
|
- | ||||||
| W10132200 | Relief, Strain |
|
- | ||||||
| W10392003 | Cord, Power |
|
$ 138.57 | ||||||
| W11637584 | Harness, Spark Module (Replaces: W10878749) |
|
$ 28.58 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | ||||||
| WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.47 |
