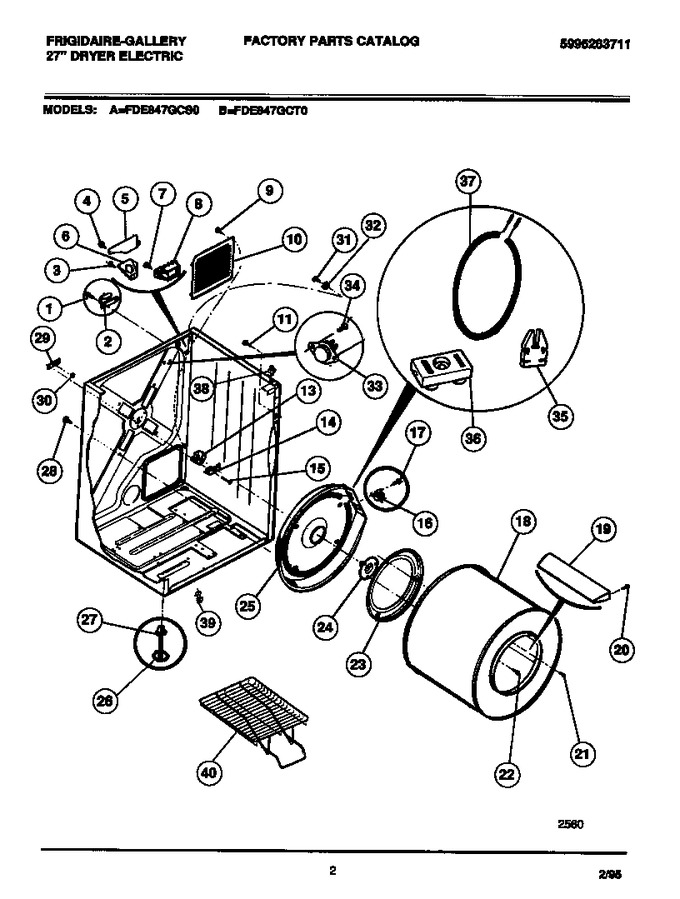

02 - Cabinet, Drum, Heater Assembly
03 - Door, Front Panel, Lint Filter
04 - Console, Controls, Top Panel
05 - Motor, Fan Housing, Exhaust Duct
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311168200 | Screw (4) |
|
- | |||||
| 2 | 131332700 | Hinge (2) |
|
- | |||||
| 3 | 5303015671 | Screw (2) |
|
- | |||||
| 4 | 5303015671 | Screw |
|
- | |||||
| 5 | 5303211428 | Cover, Terminal Block |
|
$ 44.15 | |||||
| 6 | 3281040 | Bracket |
|
- | |||||
| 7 | 131205300 | Screw (2) |
|
Immediately | $ 12.10 | ||||
| 8 | 134101400 | Terminal Block (Replaces: 5303937016) |
|
Immediately | $ 55.99 | ||||
| 9 | 131243700 | Screw (2) |
|
$ 3.36 | |||||
| 10 | 5303281018 | Cover Plate |
|
- | |||||
| 11 | 131168200 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 13 | 131825900 | Bearing (parts Contained In Rear Bearing Kit.) (Replaces: 5303281008) |
|
Immediately | $ 10.97 | ||||
| 14 | 131724301 | Bracket-bearing Support (parts Contained In Rear Bearing (Replaces: 5303281023) |
|
Immediately | $ 25.66 | ||||
| 15 | 131205400 | Screw (2) (parts Contained In Rear Bearing Kit) |
|
$ 12.76 | |||||
| 16 | 5303281113 | Thermostat, Safety |
|
$ 93.28 | |||||
| 17 | 131243700 | Screw (2) |
|
$ 3.36 | |||||
| 18 | 3201199 | Drum |
|
$ 246.86 | |||||
| 19 | 137552900 | Vane (3) (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 20 | 131205200 | Screw (6) |
|
- | |||||
| 21 | 131378200 | Screw (3) |
|
- | |||||
| 22 | 131378200 | Screw (3) (parts Contained In Rear Bearing Kit.) |
|
- | |||||
| 23 | 3204254 | Baffle |
|
$ 129.00 | |||||
| 24 | 131777700 | Shaft (parts Contained In Rear Bearing Kit) (Replaces: 131378400) |
|
Immediately | $ 71.87 | ||||
| 25 | 3937010 | Heater Assy (Replaces: 131234600) |
|
Immediately | $ 193.49 | ||||
| 26 | 5303281032 | Foot Bolt (4) |
|
- | |||||
| 27 | 3201202 | Grommet (4) |
|
$ 22.47 | |||||
| 28 | 131243700 | Screw (4) |
|
$ 3.36 | |||||
| 29 | 5303281020 | Nut-flat (parts Contained In Rear Bearing Kit.) |
|
$ 17.01 | |||||
| 30 | 5303281019 | Ball (parts Contained In Rear Bearing Kit.) |
|
$ 16.30 | |||||
| 31 | 134154100 | Ground Screw (Replaces: 131301100) |
|
$ 13.46 | |||||
| 32 | 131168200 | Ground Washer |
|
Immediately | $ 14.18 | ||||
| 33 | 134120900 | Thermal Limiter (Replaces: 5303209192) |
|
Immediately | $ 13.21 | ||||
| 34 | 08010804 | Screw |
|
- | |||||
| 35 | 131472100 | Insulator (Replaces: 5303202788) |
|
$ 60.01 | |||||
| 36 | 3202786 | Block, Terminal |
|
$ 64.49 | |||||
| 37 | 5300622034 | Coil Only |
|
Immediately | $ 66.50 | ||||
| 38 | 131346400 | Pin, Locating |
|
$ 12.44 | |||||
| 39 | 131353500 | Clip Cab Front Bottom |
|
- | |||||
| 40 | 131059700 | Rack-drying |
|
$ 50.82 | |||||
| *04880 | 5303281153 | Rear Bearing Kit |
|
Immediately | $ 46.64 |
