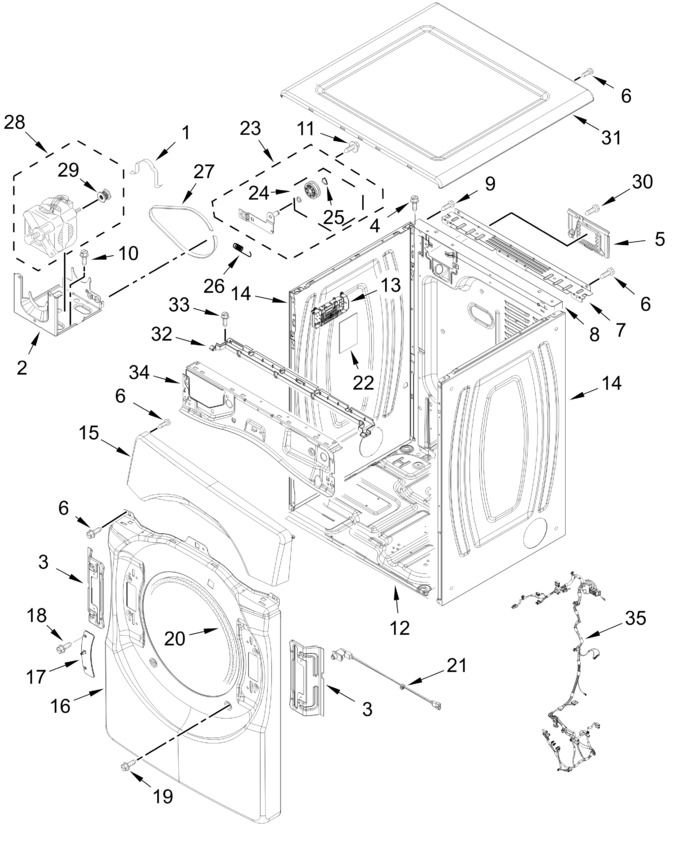

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 2 | W11481730 | Bracket, Motor Mounting (Replaces: W11404905) |
|
Immediately | $ 85.36 | ||||
| 3 | W11747862 | Bracket, Hinge (Replaces: W11715541) |
|
$ 45.67 | |||||
| 4 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 5 | W11662367 | Terminal Block Cover (Replaces: W11394868) |
|
$ 65.84 | |||||
| 6 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 7 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 8 | W10487431 | Panel, Rear |
|
$ 171.29 | |||||
| 9 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 10 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 328.82 | |||||
| 13 | W11825350 | Appliance Control Unit (acu) (Replaces: W11787395) |
|
$ 257.14 | |||||
| 14 | W11752172 | Panel, Side (radiant Silver) (Replaces: W11715174) |
|
Immediately | $ 294.43 | ||||
| 15 | W11825351 | Console Blank, Dryer (radiant Silver) (Replaces: W11785241) |
|
- | |||||
| 16 | W11825347 | Panel, Front (radiant Silver) (Replaces: W11781534) |
|
- | |||||
| 17 | W11310031 | Door Strike (Replaces: W11126752) |
|
$ 26.15 | |||||
| 18 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 19 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 20 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 29.24 | ||||
| 21 | W11551763 | Door Switch Assembly (Replaces: W11307535) |
|
Immediately | $ 29.94 | ||||
| 22 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 21.38 | |||||
| 23 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 32.20 | ||||
| 24 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 29.26 | ||||
| 25 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 9.14 | ||||
| 26 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 27 | W11667280 | Belt, Drive (Replaces: W11575710) |
|
$ 31.66 | |||||
| 28 | W11511154 | Assembly, Motor (Replaces: W11322192) |
|
Immediately | $ 254.27 | ||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 46.15 | ||||
| 30 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 31 | W11752174 | Panel, Top (radiant Silver) (Replaces: W11709966) |
|
Immediately | $ 333.05 | ||||
| 32 | W11310027 | Water Channel (Replaces: W11255768) |
|
$ 21.37 | |||||
| 33 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 34 | W11480682 | Bracket, Console |
|
$ 73.09 | |||||
| 35 | W11310055 | Harness, Wiring (main) (Replaces: W11109747) |
|
$ 223.62 |
