01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks

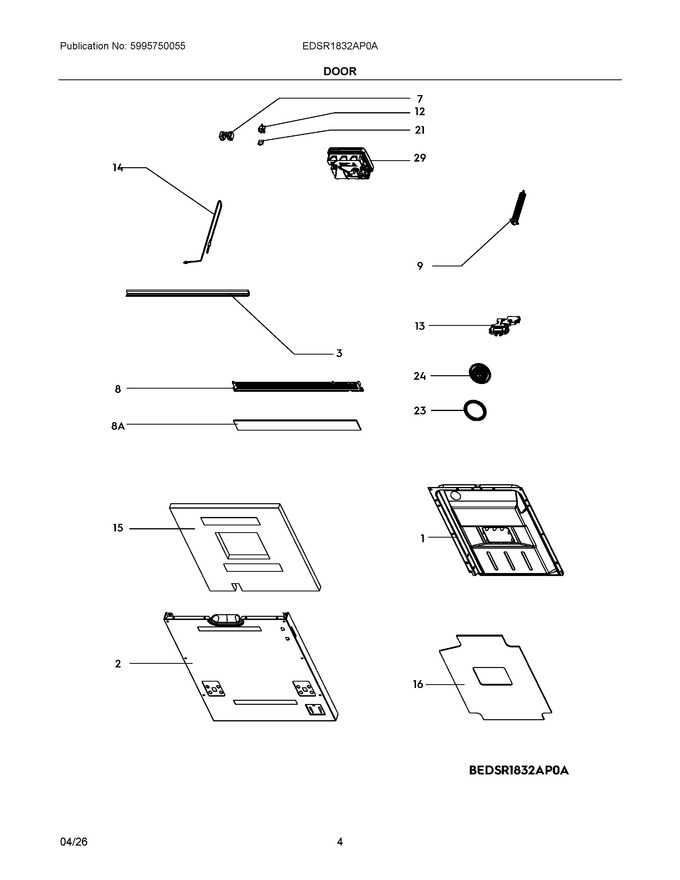

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056035258		Inner Door Assembly		Appelez-nous	-
2	4056035183		Outer Door, Stainless		Appelez-nous	-
3	4056032511		Seal, Door		Appelez-nous	-
7	4056026414		Door Lock, Assembly		Appelez-nous	-
8	4056035233		Panel, Toe Plate, Door		Appelez-nous	-
9	4056035399		Spring, Door		Appelez-nous	-
12	4056026380		Hook, Door Lock		Appelez-nous	-
13	4056035274		Door Switch, Assembly		Appelez-nous	-
14	4056035381		Cable, Door		Appelez-nous	-
15	4056035175		Damper, Door		Appelez-nous	-
16	4056035225		Damper, Inner Door		Appelez-nous	-
21	5304519231		Seal, Door Lock		Appelez-nous	-
23	5304519221		Seal, Air Vent, Door Liner				$ 12.65
24	5304519222		Nut, Air Vent, Door Liner				$ 60.01
29	5304522079		Dispenser, Detergent				$ 201.70
8A	4056035241		Damper, Toe Plate		Appelez-nous	-
