SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

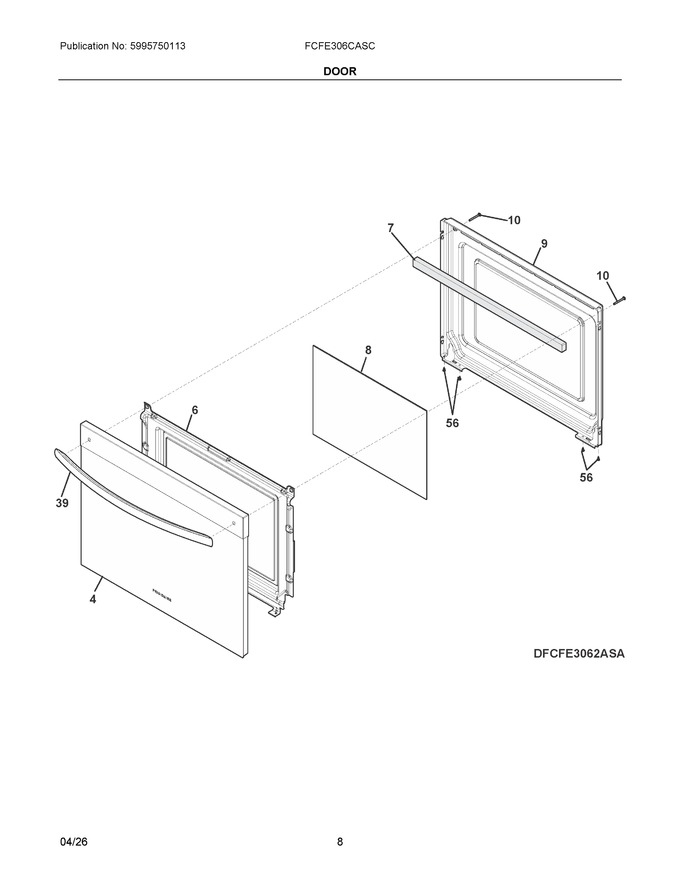

05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304533446		Door Assembly, Outer, Glass/steel, Black				$ 167.39
6	5304526283		Shield, Wool			Immediately	$ 108.77
7	140299178057		Insulation, Door, Top		Appelez-nous	-
8	140163079118		Glass, Door, Inner   (Replaces: 5304538352)			Immediately	$ 53.47
9	5304533466		Liner, Oven Door, Midnight Black			Immediately	$ 117.34
10	316433305		Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg.				$ 2.28
39	140067504096		Handle, Door, Stainless				$ 53.48
56	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
56A	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
NI	316483102		Label, Anti-tip				$ 3.56

    View Diagram in Separate Window       Print Part List
