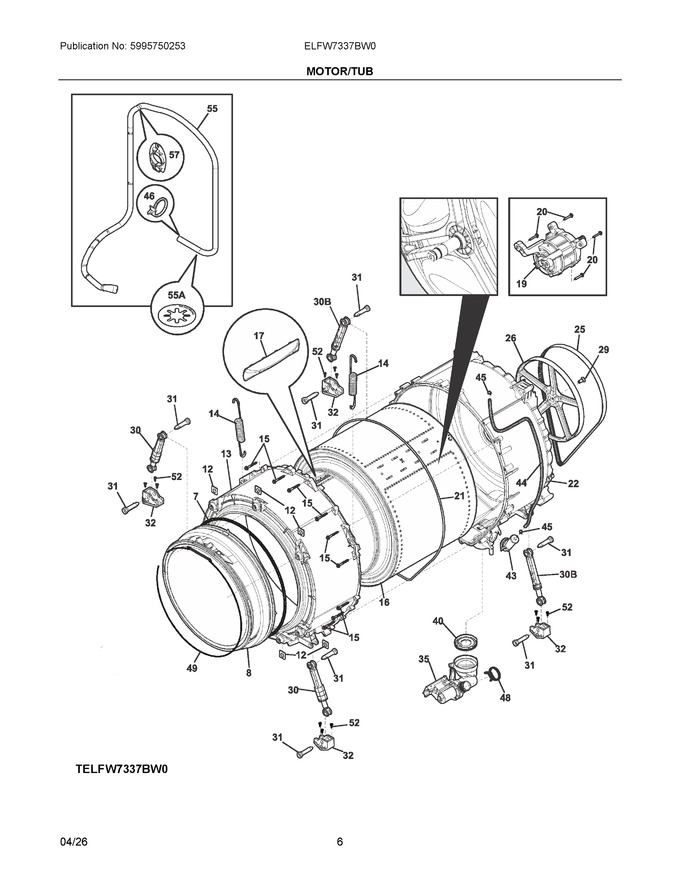

04 - Motor/tub
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 134616200 | Spring, Boot Retainer |
|
Immediately | $ 49.28 | ||||
| 8 | 140004669069 | Bellows, Door Boot |
|
- | |||||
| 12 | 5304505175 | Plate, Counterweight, (7), W/nut Insert |
|
$ 13.01 | |||||
| 13 | 5304533999 | Shell, Tub, Front |
|
$ 169.55 | |||||
| 14 | 5304505117 | Spring, Tub Suspension, (2) |
|
Immediately | $ 67.44 | ||||
| 15 | 131303900 | Screw, Hex Washer Head, 1/4-10a X 2.165 |
|
$ 15.60 | |||||
| 16 | 5304505337 | Drum Assembly, Spin Basket, W/vanes |
|
$ 498.10 | |||||
| 17 | 137263600 | Vane |
|
Immediately | $ 53.07 | ||||
| 19 | 140285511014 | Motor, Washer |
|
Immediately | $ 136.09 | ||||
| 20 | 131303500 | Screw, 12-14ab X 1.50, Motor Mtg. |
|
$ 12.05 | |||||
| 21 | 5304522569 | Seal, Tub Shell |
|
Immediately | $ 58.56 | ||||
| 22 | 5304505158 | Shell, Outer Tub, Rear, W/bearing, Seal |
|
$ 477.14 | |||||
| 25 | 134616701 | Belt, Drive, Poly-v |
|
Immediately | $ 57.06 | ||||
| 26 | 5304514822 | Pulley, Drum Drive, Rear |
|
Immediately | $ 183.38 | ||||
| 29 | 5304505380 | Bolt, W/washer, M10 X 1.5 |
|
Immediately | $ 34.88 | ||||
| 30 | 137412701 | Shock Absorber, Dual Stage |
|
Immediately | $ 76.15 | ||||
| 31 | 5304532011 | Pin, Shock Mtg. |
|
Immediately | $ 7.96 | ||||
| 35 | 5304505209 | Drain Pump, Assembly, Idb, W/filter |
|
Immediately | $ 230.66 | ||||
| 40 | 5304505208 | Diaphragm, Valve Assy |
|
$ 56.39 | |||||
| 43 | 5304535707 | Air Chamber, Assembly |
|
- | |||||
| 44 | 5304535282 | Hose, Pressure Switch (Replaces: 5304505210) |
|
$ 34.18 | |||||
| 45 | 137087500 | Clamp, Hose |
|
$ 10.13 | |||||
| 46 | 134261300 | Clip, Drain Hose, Push-mount |
|
$ 12.05 | |||||
| 48 | 5304536802 | Clamp, Hose |
|
Immediately | $ 4.01 | ||||
| 49 | 134616300 | Clamp, Bellows, Spring Held |
|
Immediately | $ 35.44 | ||||
| 52 | 131202300 | Screw, 10-16ab X 0.625 |
|
Immediately | $ 13.46 | ||||
| 55 | 137629209 | Drain Hose, Assembly, One Piece, W/cable Ties |
|
Immediately | $ 58.27 | ||||
| 57 | 134641100 | Bracket, Drain Hose Mtg, Rear |
|
$ 19.85 | |||||
| 30B | 137412601 | Shock Absorber, Single Stage |
|
Immediately | $ 50.72 | ||||
| 55A | 137385100 | Ring, Anti-syphon |
|
$ 14.18 | |||||
| NI | 140028175051 | Wiring Harness, Motor |
|
$ 24.01 | |||||
| NI | 137110800 | Cushion, Shock Bracket, Left Rear |
|
$ 13.46 | |||||
| NI | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| NI | 131302800 | Screw, Quadrex Ph, 10-16ab X 0.5 |
|
Immediately | $ 26.58 | ||||
| NIA | 131931202 | Dampener, Vibration, Foam |
|
$ 17.35 | |||||
| NIA | 5304505437 | Screw, Housing Mtg. |
|
- |
