02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

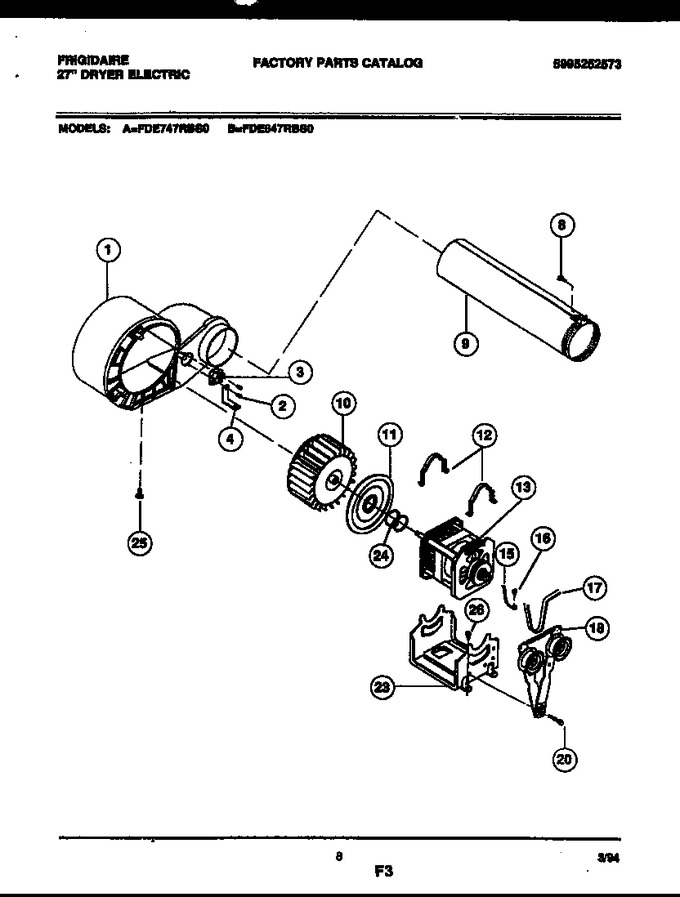

| 1 | 5303270858 | Housing, Fan |
|
- | |||||
| 2 | 3261048 | Screw |
|
- | |||||
| 3 | 131298300 | Thermostat - Control |
|
Immediately | $ 62.37 | ||||
| 4 | 5303269972 | Bracket, Grounding |
|
- | |||||
| 8 | 5303015671 | Screw |
|
- | |||||
| 9 | 5303269973 | Duct, Exhaust |
|
- | |||||
| 10 | 131089400 | Wheel, Blower |
|
- | |||||
| 11 | 5303281080 | Cover, Fan |
|
- | |||||
| 12 | 5303212834 | Clamp, Motor |
|
$ 3.78 | |||||
| 13 | 131198400 | Motor & Pulley |
|
- | |||||
| 15 | 131062205 | Jumper Wire |
|
- | |||||
| 16 | 131168200 | Screw Ground |
|
Immediately | $ 14.18 | ||||
| 17 | 131553800 | Belt (Replaces: 131130700) |
|
Immediately | $ 28.35 | ||||
| 18 | 131131501 | Idler Assembly |
|
- | |||||
| 20 | 131017900 | Screw |
|
$ 14.46 | |||||
| 23 | 131210401 | Cradle-motor |
|
- | |||||
| 24 | 5303281083 | Spring |
|
- | |||||
| 25 | 3281036 | Screw (4) |
|
- | |||||
| 26 | 3281077 | Screw |
|
- | |||||
| 13A | 5303299316 | Switch-motor (non-illustrated) |
|
- |
