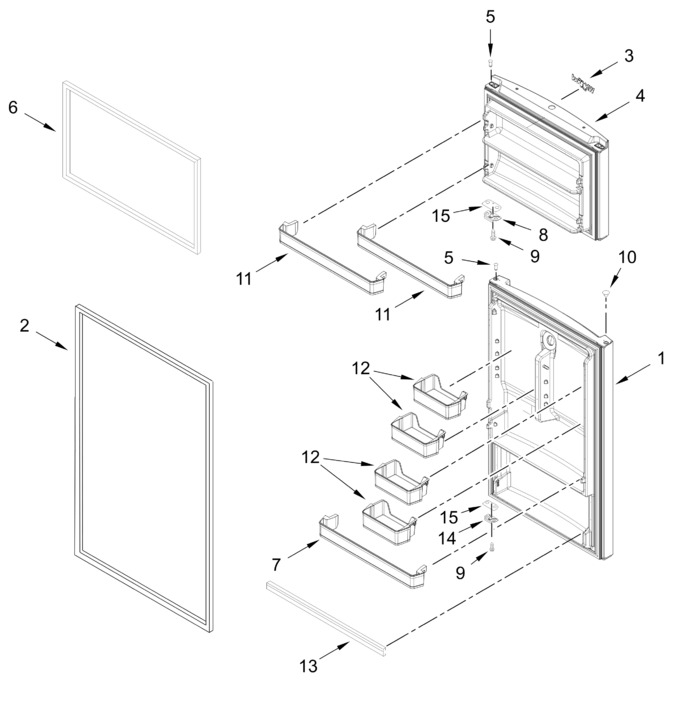

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11826660 | Refrigerator Door Assembly (stainless, Includes Door Gasket) |
|
- | |||||
| 2 | W11578847 | Gasket, Door (grey) (Replaces: W10246160) |
|
Immediately | $ 215.42 | ||||
| 3 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 4 | W11826378 | Freezer Door Assembly (stainless, Includes Door Gasket) |
|
- | |||||
| 5 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 10.89 | |||||
| 6 | W11661186 | Gasket, Fc Door (grey) (Replaces: W10843448) |
|
Immediately | $ 197.19 | ||||
| 7 | W11830188 | Bin, Door (rc) (Replaces: W11769711) |
|
- | |||||
| 8 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 9 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 10 | WP2212651 | Plug, Hinge Hole (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 11 | W11830190 | Bin, Door (fc) (Replaces: W11767123) |
|
- | |||||
| 12 | W11830189 | Bin, Large Door (rc) (Replaces: W11785038) |
|
- | |||||
| 13 | W10245587 | Trim, Door Shelf |
|
- | |||||
| 14 | W10492012 | Bracket, Door Stop |
|
$ 14.45 | |||||
| 15 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 |
