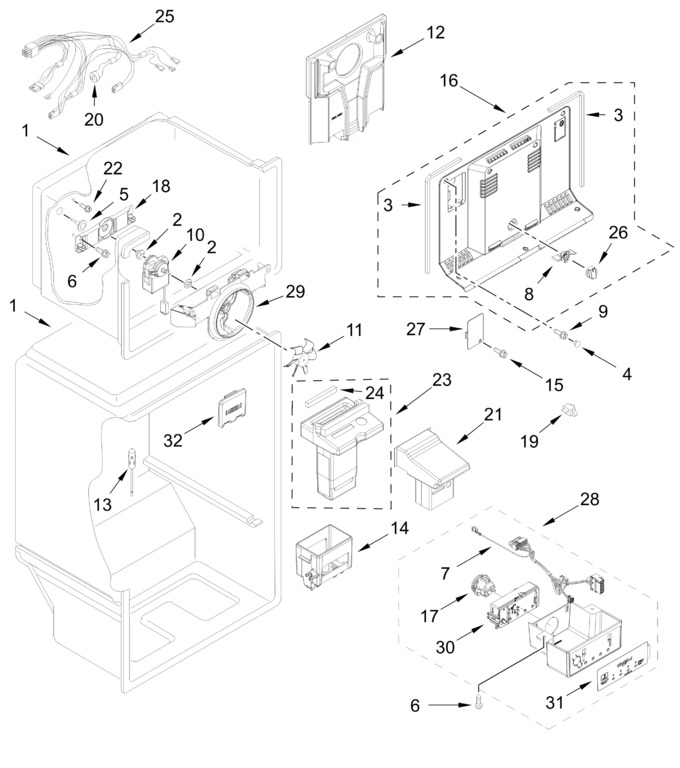

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI5B043898161B9E887C9B86F7C890BB1B		Liner (not Serviced)		Appelez-nous	-
2	WP2264462		Grommet   (Replaces: 2197380)			Immediately	$ 39.57
3	W10849448		Gasket, Evaporator Cover   (Replaces: W10709194)			Immediately	$ 82.02
4	W10854527		Cover, Screw   (Replaces: W10487421)				$ 8.47
5	WP941839		Hole Plug (white)   (Replaces: 941839)				$ 6.89
6	WP488163		Screw   (Replaces: 488208)				$ 6.79
7	W11807714		Wire Assembly, Control Box   (Replaces: W11600715)		Appelez-nous	-
8	W11830165		Damper, Fc Air Control   (Replaces: W11773865)		Appelez-nous	-
9	W11544659		Screw   (Replaces: 8281232)				$ 12.30
10	WP2315539		Motor, Evaporator Fan   (Replaces: 2315539)			Immediately	$ 74.93
11	WP2163777		Blade, Fan   (Replaces: 2200509)			Immediately	$ 59.54
12	W11666272		Plenum Assembly, Evaporator   (Replaces: W10813581)		Appelez-nous	-
13	W11724692		Thermistor, Refrigerator   (Replaces: W10452402)			Immediately	$ 28.80
14	W10570480		Cover, Air Diffuser		Appelez-nous	-
15	W10720456		Screw (white)		Appelez-nous	-
16	W11830171		Evaporator Cover Assembly   (Replaces: W11767118)		Appelez-nous	-
17	W11502762		Module, Led   (Replaces: W11254095)			Immediately	$ 32.13
18	2254454		Bracket, Evaporator Fan Rear			Immediately	$ 64.67
19	W11727836		Switch, Light   (Replaces: W11514900)			Immediately	$ 21.20
20	ARI19ED5D80872328754654B700CD457BD5		Bi-metal Defrost (not Serviced)		Appelez-nous	-
21	W11208347		Duct, Air   (Replaces: W10570941)				$ 84.38
22	WP489478		Screw   (Replaces: 489478)				$ 6.98
23	W11779489		Air Diffuser Assembly		Appelez-nous	-
24	W10702120		Gasket, Air Diffuser		Appelez-nous	-
25	W11609822		Wire, Evaporator Fan (includes Thermal Fuse)   (Replaces: W11314500)			Immediately	$ 70.51
26	W11807624		Knob, Fc Air Control   (Replaces: W11750995)		Appelez-nous	-
27	W11341621		Cover, Hole		Appelez-nous	-
28	W11831817		Control Box Assembly   (Replaces: W11789948)			Immediately	$ 240.92
29	W10850162		Bracket, Fan Motor   (Replaces: W10321162)			Immediately	$ 27.83
30	W11831821		Control, Electronic   (Replaces: W11789947)		Appelez-nous	-
31	W11830174		Overlay   (Replaces: W11789951)		Appelez-nous	-
32	2321148		Housing, Thermistor		Appelez-nous	-
