SELECT A DIAGRAM

01 - Cover


02 - P16v0037 Dry Cab,heater

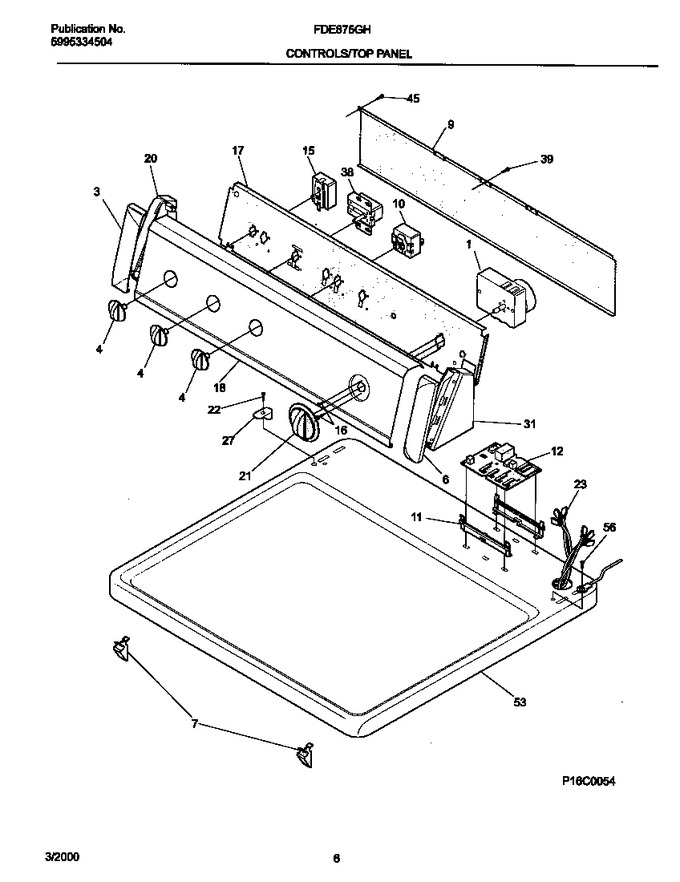

03 - P16d0020 Frnt Pnl,door


04 - P16c0054 Control Panel


05 - P16m0019 Motor,blower


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131579900		Timer				$ 225.24
3	131122612		Cover-end Cap, Almond, Lh		Appelez-nous	-
4	131141106		Knob-rotary-almond		Appelez-nous	-
6	131122602		Cover-end Cap, Almond, Rh		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
11	131587400		Bracket-control Board,(2)				$ 44.40
12	131620200		Control Board,moisture Sensor		Appelez-nous	-
15	131641900		Switch-temperature		Appelez-nous	-
16	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-control		Appelez-nous	-
18	131944800		Trimplate Fde/b7srhfd-3		Appelez-nous	-
20	131122712		End Cap, Almond, Lh		Appelez-nous	-
21	131810501		Knob-timer-gallery Almond				$ 60.59
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131872300		Harn-fsd Main-h,r&s Elec		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122702		End Cap, Almond, Rh		Appelez-nous	-
38	131048300		Buzzer		Appelez-nous	-
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
45	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131601319		Panel-top Almond		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
*72126	131663300		Harness-buzzer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
