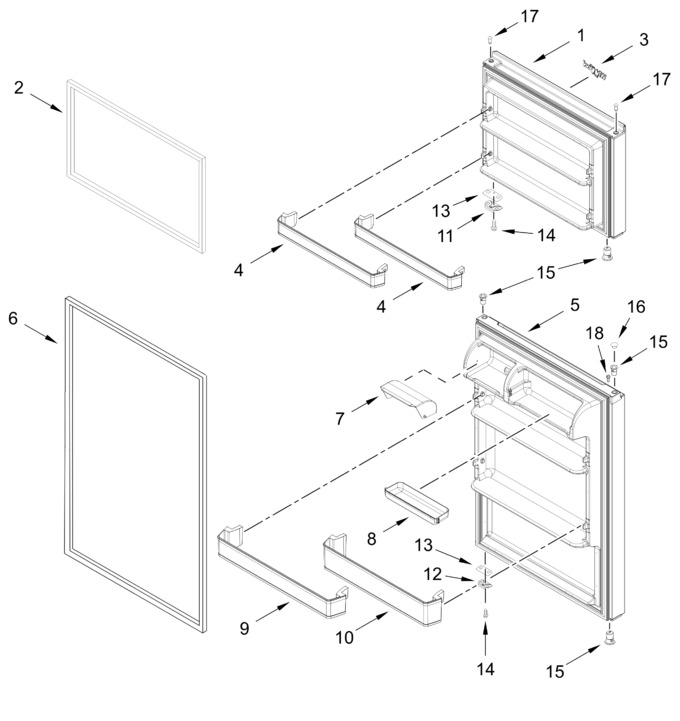

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826360		Freezer Door Assembly (stainless, Includes Door Gasket)   (Replaces: W11778285)		Appelez-nous	-
2	W11661186		Gasket, Fc Door (grey)   (Replaces: W10244875)			Immediately	$ 197.19
3	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
4	W11830190		Bin, Door (fc)   (Replaces: W11767123)		Appelez-nous	-
5	W11826643		Refrigerator Door Assembly (stainless, Includes Door Gasket)   (Replaces: W11778290)		Appelez-nous	-
6	W11447196		Gasket, Rc Door (grey)   (Replaces: W11084000)				$ 252.11
7	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 52.88
8	W11831826		Bin, Rc Door Tray   (Replaces: W11764418)		Appelez-nous	-
9	W11831819		Bin, Rc Door (top)   (Replaces: W11767327)		Appelez-nous	-
10	W11831824		Bin, Rc Door (interm)   (Replaces: W11757898)		Appelez-nous	-
11	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
12	W10492012		Bracket, Door Stop				$ 14.45
13	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 6.47
14	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
15	W11676573		Thimble, Top (grey)   (Replaces: W10492022)				$ 12.69
16	WP2254517		Plug, Hinge Hole (grey)   (Replaces: 2254517)			Immediately	$ 20.86
17	WP2182181		Thimble, Top (white)   (Replaces: 2200087)				$ 6.98
18	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
