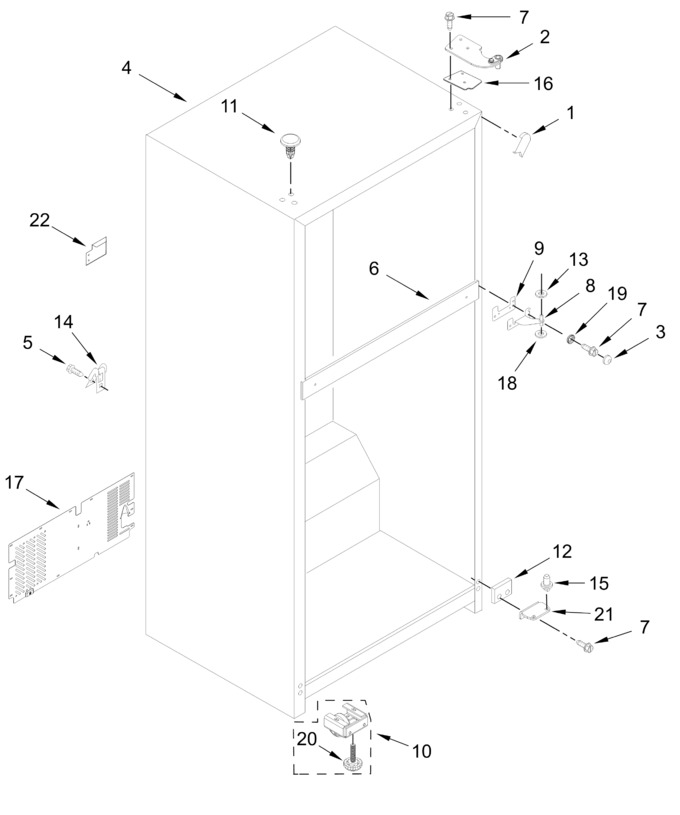

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859322		Filler, Corner (white)   (Replaces: 2166003)				$ 6.93
2	W11714879		Hinge Assembly, Top Right   (Replaces: W11656390)				$ 21.17
3	W10846529		Cap, Dome (white)   (Replaces: W10674771)			Immediately	$ 16.99
4	ARIF06CCFE9BD0F0FDB975806FEDA58D816		Cabinet (not Serviced)		Appelez-nous	-
5	WP489442		Screw   (Replaces: 489442)			Immediately	$ 9.85
6	ARIC034192546E98BAD7D6171A40486F101		Rail, Center (not Serviced)		Appelez-nous	-
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
8	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 70.34
9	2166043		Shim, Hinge Center (white)				$ 59.80
10	WPW10142530		Roller Assembly (includes Leveler)   (Replaces: W10142530)			Immediately	$ 101.23
11	WPW10520304		Plug, Hole (white)   (Replaces: W10520304)			Immediately	$ 16.47
12	WP2201567		Shim, Hinge (bottom)   (Replaces: 2201567)				$ 6.99
13	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 9.79
14	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 18.96
15	W11026307		Hinge Pin   (Replaces: W10638688)			Immediately	$ 66.52
16	W11714879		Shim, Top Hinge   (Replaces: W11656515)				$ 21.17
17	W11307292		Cover, Rear Unit				$ 42.71
18	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 8.89
19	W10847959		Cap, Washer Dome   (Replaces: W10674773)				$ 9.66
20	WPW10133299		Leveler   (Replaces: W10133299)				$ 10.58
21	WP2325482		Hinge, Bottom   (Replaces: 2325482)			Immediately	$ 68.57
22	W11528668		Access Cover, Valve   (Replaces: W11458717)		Appelez-nous	-
