View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

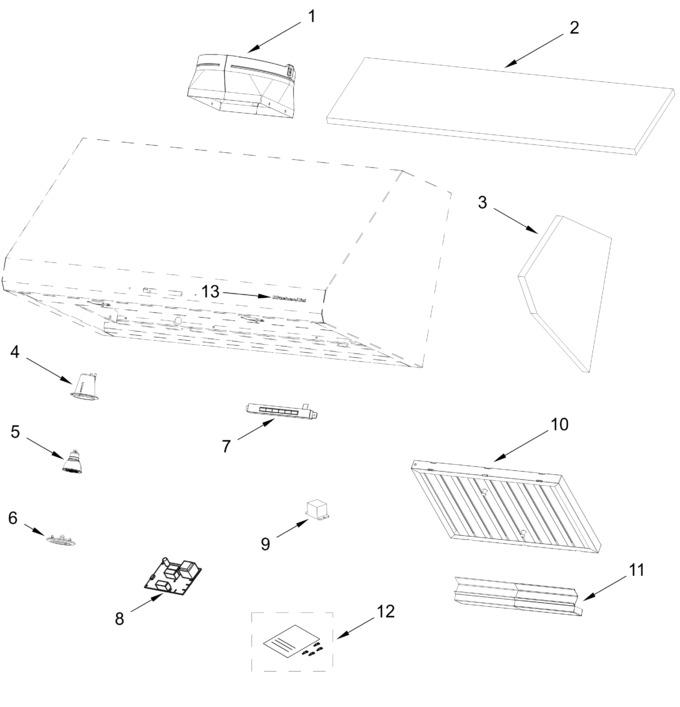

Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11156393 | Assembly, Damper |
|
$ 192.85 | |||||
| 2 | W11565684 | Insulation (36 Inch) (Replaces: W11565537) |
|
- | |||||
| 3 | W11688337 | Insulation, Side (Replaces: W11565542) |
|
- | |||||
| 4 | W11565681 | Socket, Lamp (Replaces: W11565528) |
|
$ 136.71 | |||||
| 5 | W11800238 | Lamp, Led (Replaces: W11799463) |
|
Immediately | $ 78.87 | ||||
| 6 | W10351924 | Bezel, Lamp |
|
$ 177.83 | |||||
| 7 | W11516463 | Control (Replaces: W11514909) |
|
$ 329.74 | |||||
| 8 | W11700319 | Filter, Noise (Replaces: W11565531) |
|
$ 226.79 | |||||
| 9 | W11565687 | Relay (Replaces: W11565541) |
|
$ 90.27 | |||||
| 10 | W10351892 | Filter, Grease (Replaces: W10836743) |
|
$ 242.68 | |||||
| 11 | W10294011 | Tray, Grease (36 Inch) |
|
$ 287.84 | |||||
| 12 | W11565535 | Hardware, Installation |
|
- | |||||
| 13 | W11783546 | Badge (Replaces: W11688411) |
|
- |
