SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

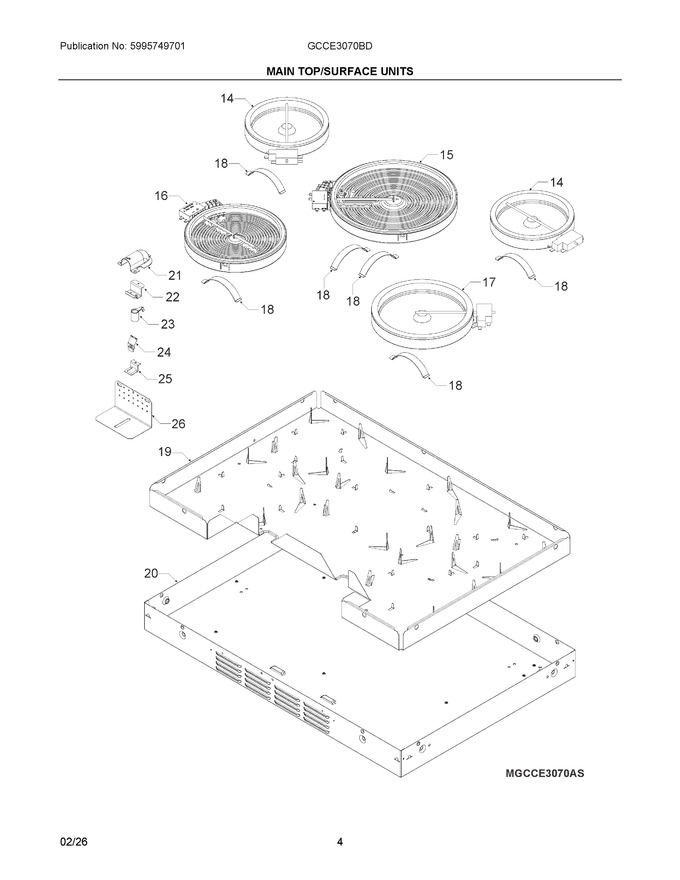

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)			Immediately	$ 73.17
15	8583165300010		Element, Surface, 9", 3200w, Tboil			Immediately	$ 76.06
16	8583740636383		Element, 1800w, 240v			Immediately	$ 117.78
17	8583181989531		Element, 750/1800w		Appelez-nous	-
18	387372900		Spring, Surface Element				$ 15.17
19	5304534164		Box, Support, Inner, Element		Appelez-nous	-
20	140229566033		Box, Burner, Outer, 30   (Replaces: 5304534146)		Appelez-nous	-
21	5304534148		Cover, Elbow, Box & Cable		Appelez-nous	-
22	5304518258		Bracket, Support, Z Style		Appelez-nous	-
23	5304534149		Bracket, Support, Plastic		Appelez-nous	-
24	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
25	387683300		Bracket, Surface Element			Immediately	$ 13.42
26	5304538915		Bracket, Retainer, Maintop			Immediately	$ 5.41
NI	5304534163		Harness, Box & Cable, Power Connect		Appelez-nous	-
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	5304534167		Harness, Wiring, Main		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.42
NIA	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
NIA	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NIA	305309608		Screw, M4		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
