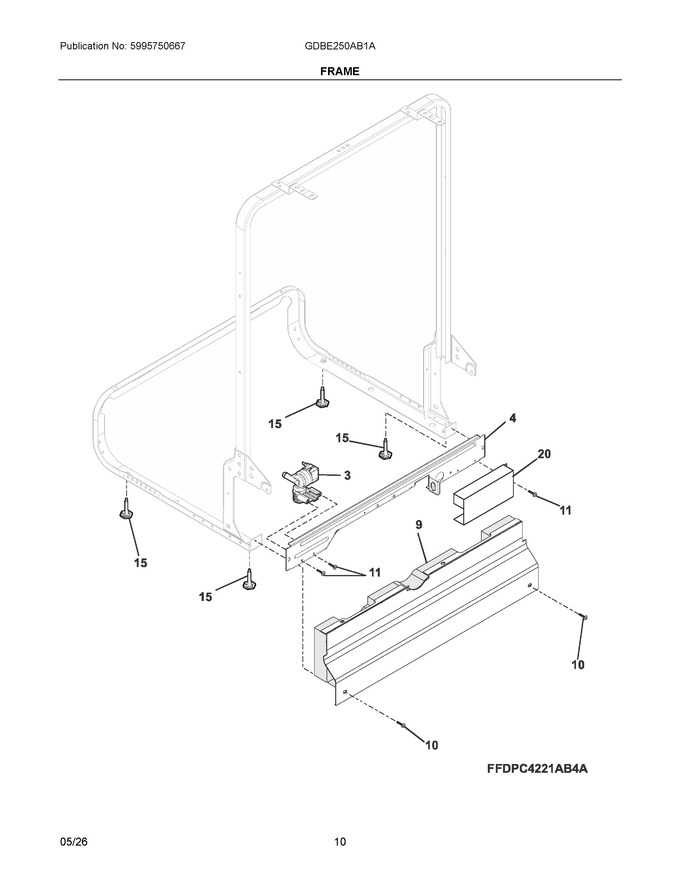

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304525044 | Valve, Water Inlet |
|
Immediately | $ 48.44 | ||||
| 4 | 5304508587 | Brace, Front Frame |
|
$ 28.92 | |||||
| 9 | 5304501484 | Kickplate Assy, Pvc, Black, W/label |
|
Immediately | $ 51.08 | ||||
| 10 | 154754801 | Screw, Toeplate Mtg, 8-18 Ab Hex Hd, Black, (2) |
|
Immediately | $ 7.30 | ||||
| 11 | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| 15 | 5304506540 | Leg, Leveling, 1/4-20 |
|
Immediately | $ 10.85 | ||||
| 20 | 154758501 | Cover, Junction Box, W/label |
|
$ 20.84 | |||||
| 11A | 808690701 | Screw, Plask1, #10-10 X 9/16, (2) |
|
- | |||||
| NI | 134154100 | Screw, #10-32 X 3/8 (Replaces: 154200701) |
|
$ 13.46 | |||||
| NIA | 154611101 | Clamp, Hose, 1.29" Open, Worm Gear, (2) (Replaces: 154106801) |
|
$ 12.05 | |||||
| NIA | 5300807373 | Washer |
|
- |
