02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

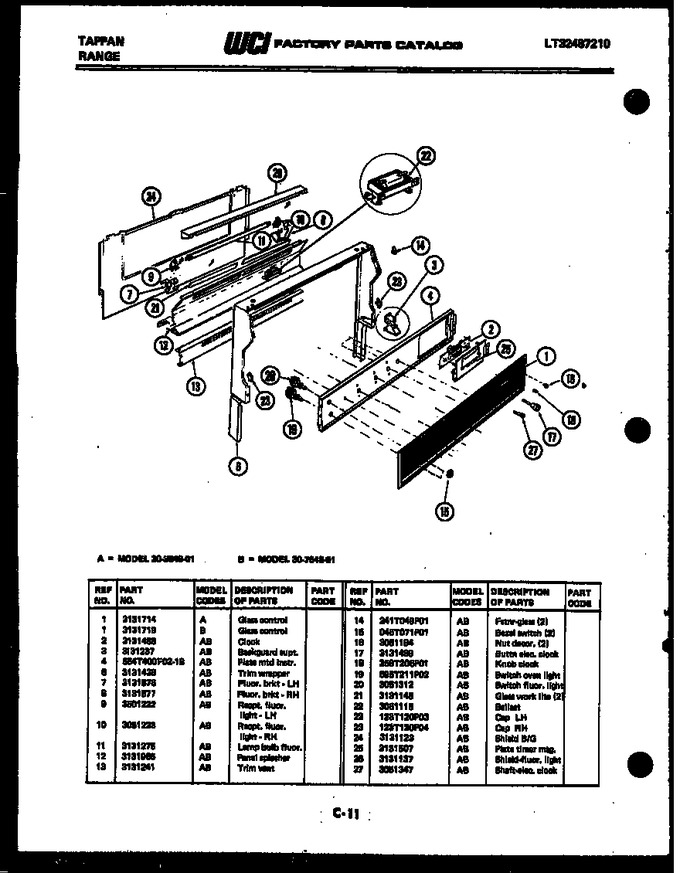

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131714 | Glass Control |
|
- | |||||
| 2 | 3131488 | Clock |
|
- | |||||
| 3 | 3131237 | Backguard Supt. |
|
- | |||||
| 4 | 554T400F02-18 | Plate Mtd Instr. |
|
- | |||||
| 6 | 3131436 | Trim Wrapper |
|
- | |||||
| 7 | 3131576 | Fluor, Brkt Lh |
|
- | |||||
| 8 | 3131577 | Fluor, Brkt Rh |
|
- | |||||
| 9 | 3501222 | Recpt, Fluor Light - Lh |
|
- | |||||
| 10 | 3051223 | Recpt, Fluor, Light Rh |
|
- | |||||
| 11 | 3131275 | Lamp Bulb Fluor. |
|
$ 49.40 | |||||
| 12 | 3131965 | Panel, Splasher |
|
- | |||||
| 13 | 3131241 | Trim-vent |
|
- | |||||
| 14 | 241T049P01 | Fstnr-glass(2) |
|
- | |||||
| 15 | 045T071P01 | Bezel, Switch |
|
- | |||||
| 16 | 3051194 | Nut - Decor (2) |
|
- | |||||
| 17 | 3131489 | Buttn Elec Clock |
|
- | |||||
| 18 | 358T206P01 | Knob, Clock |
|
- | |||||
| 19 | 695T211P02 | Switch - Oven Light |
|
- | |||||
| 20 | 3051312 | Switch - Fluor Light |
|
- | |||||
| 21 | 3131145 | Glass-work Lite (2) |
|
- | |||||
| 22 | 3051115 | Ballast |
|
- | |||||
| 23 | 123T120P03 | Cap Lh |
|
- | |||||
| 23 | 123T120P04 | Cap Rh |
|
- | |||||
| 24 | 3131123 | Shield B/g |
|
- | |||||
| 25 | 3131507 | Plate - Timer Mtg |
|
- | |||||
| 26 | 3131137 | Shield - Fluor Light |
|
- | |||||
| 27 | 3051347 | Shaft-elec Clock |
|
- |
