01 - Cover Sheet

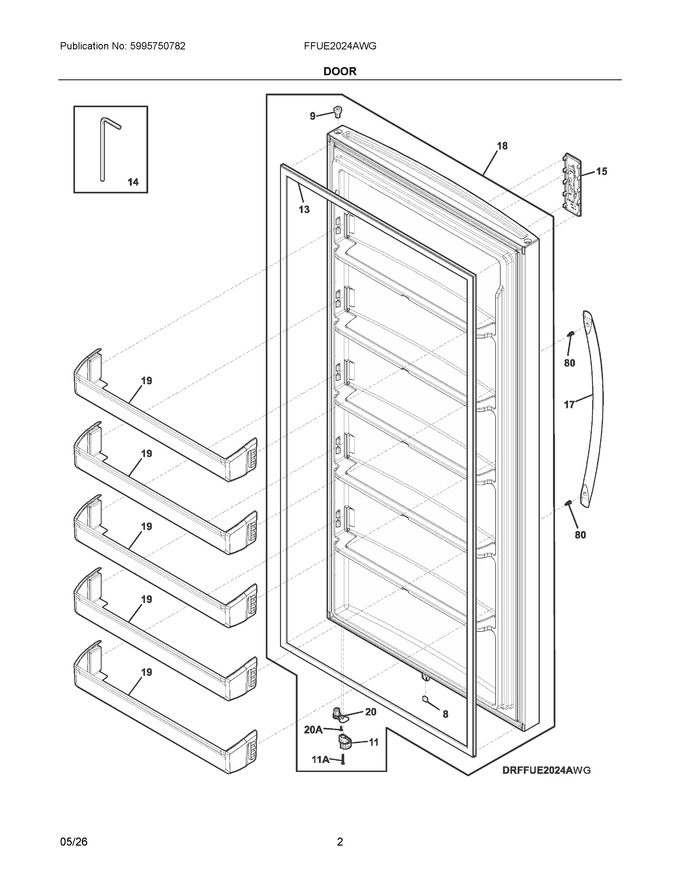

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 140026775019 | Sensor, Magnet, Switch, Reed |
|
$ 4.11 | |||||
| 9 | 5304519757 | Bearing, Hinge, White |
|
Immediately | $ 7.30 | ||||
| 11 | 5304519789 | Hook, Door Closer, White |
|
Immediately | $ 4.55 | ||||
| 13 | 140190906861 | Gasket, Door, Gray (Replaces: 5304524887) |
|
Immediately | $ 112.54 | ||||
| 14 | 241601002 | Wrench, Allen |
|
- | |||||
| 15 | 140122120037 | User Interface, Assembly, Iolite |
|
Immediately | $ 137.96 | ||||
| 17 | 5304511770 | Handle, Door, Stainless, W/set Screws |
|
Immediately | $ 229.03 | ||||
| 18 | 5304531521 | Door Assembly, Freezer, White, W/gasket-hrdwre |
|
$ 383.32 | |||||
| 19 | 5304524110 | Shelf, Door, Clear |
|
Immediately | $ 39.04 | ||||
| 20 | 5304523784 | Bearing, Door, Lower |
|
$ 7.23 | |||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 11A | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 | ||||
| 20A | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 5304524123 | Harness, Jumper, Cabinet, To Door |
|
$ 24.08 | |||||
| NIA | 240494001 | Button, Plug, White |
|
Immediately | $ 18.20 |
